5500
Medium Usage Order Picker up to 9.3m
Toyota Material Handling
5500-OPC30
Order Pickers

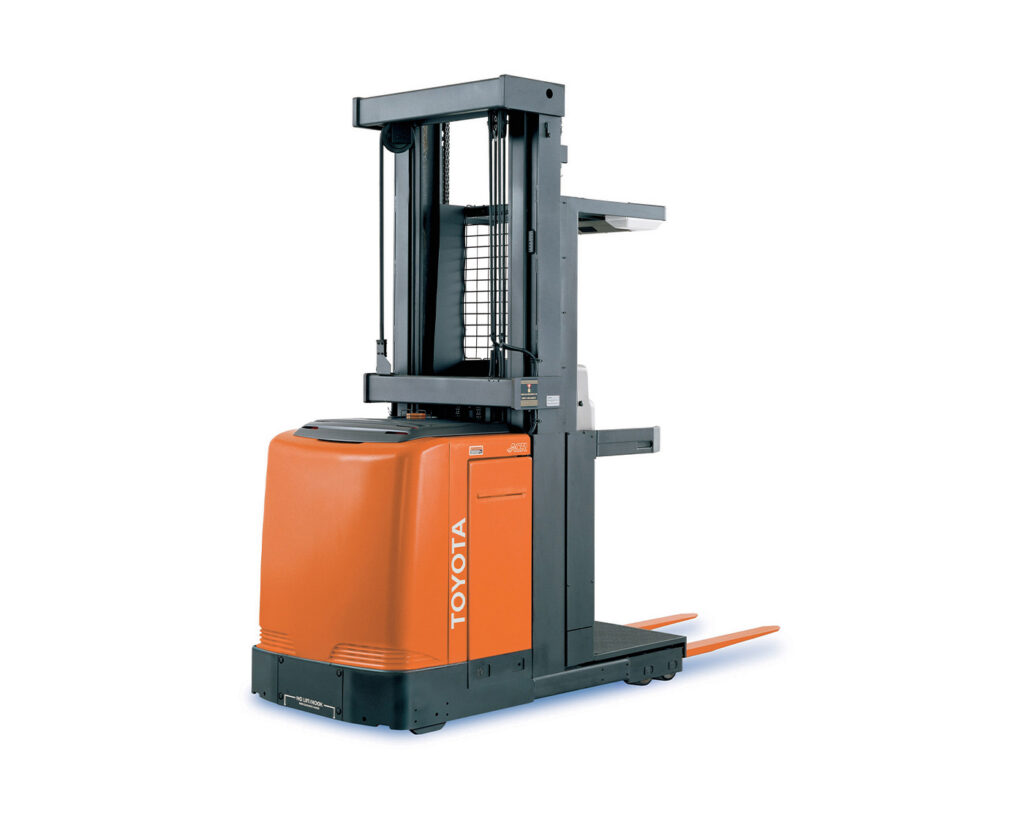

The 5500 Order Picker Truck offers quick acceleration and fast lift speeds to keep your operators moving. AC Drive and AC Lift motors contribute to smoother operation, greater energy efficiency and longer component life.
Key Benefits
- Large Pick Window helping operators to be more productive
- LED Light and Fan Package to improve visibility
- Smooth and precise speed control
- Auto-steering centering offers superior manoeuvrability
Turning Radius (mm)
1829
Lift Height (mm)
11582
Load Capacity (kg)
1360
Travel Speed, no load (km/h)
10,46
Application & Usage
| Application Usage | Order Picking |
| Suitable Areas | Warehouses |
| Operator Position | Standing |
| Usage Intensity | Medium-High |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 1880 |
| Width of Truck (mm) | 1016 |
| Turning Radius (mm) | 1829 |
| Overhead Guard Height (mm) | 2236 |
Lifting, Mast & Forks
| Fork Height (mm) | 83 |
| Fork Height, lowest (mm) | 82 |
| Free Lift (mm) | 2642 |
| Lift Height (mm) | 11582 |
| Lift Speed, no load (m/s) | 0,46 |
| Mast Height, extended (mm) | 12065 |
| Mast Height, lowered (mm) | 2236 |
| Pick Height | N/A |
| Order Picking Stand height (in) | 460,5 |
| Order Picking Stand height (mm) | 11696 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1360 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 2170 |
| Total Truck Height (mm) | N/A |
| Travel Speed, no load (km/h) | 10,46 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 1085 |
| Power Type | Lead acid |
| Transmission | N/A |
