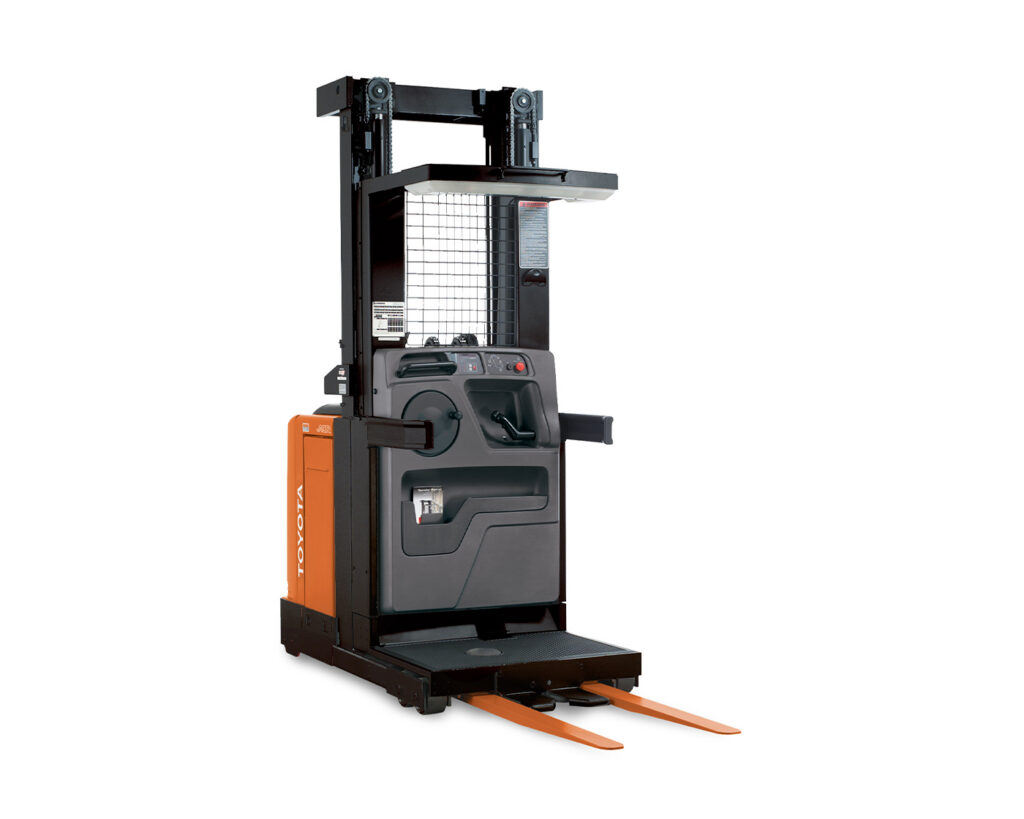

5600
Heavy Duty Order Picker up to 9.9m
Toyota Material Handling
5600-OPC30
Order Pickers
The 5600 Order Picker is the top-performing order picker truck. The 5600 stock picker is best suited for high throughput, elevated height, 36 volt applications. The ACR System provides quick acceleration and AC Drive and AC Lift.
Key Benefits
- Large Pick Window helping operators to be more productive
- LED Light and Fan Package to improve visibility
- Advanced intellispeed™ System smoothly coordinates travel speeds and load height
- In-Aisle Detection System
Turning Radius (mm)
1829
Lift Height (mm)
9906
Load Capacity (kg)
1360
Travel Speed, no load (km/h)
10,46
Application & Usage
| Application Usage | Order Picking |
| Suitable Areas | Warehouses |
| Operator Position | Standing |
| Usage Intensity | High |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 1880 |
| Width of Truck (mm) | 1016 |
| Turning Radius (mm) | 1829 |
| Overhead Guard Height (mm) | 2236 |
Lifting, Mast & Forks
| Fork Height (mm) | 83 |
| Fork Height, lowest (mm) | 82 |
| Free Lift (mm) | N/A |
| Lift Height (mm) | 9906 |
| Lift Speed, no load (m/s) | 0,58 |
| Mast Height, extended (mm) | 12065 |
| Mast Height, lowered (mm) | 2236 |
| Pick Height | N/A |
| Order Picking Stand height (in) | 394,5 |
| Order Picking Stand height (mm) | 10020 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1360 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 2170 |
| Total Truck Height (mm) | N/A |
| Travel Speed, no load (km/h) | 10,46 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage | 36 |
| Battery Capacity (Ah) | 1240 |
| Power Type | Lead acid |
| Transmission | N/A |
