7310
4-way Reach Truck, 2T
Toyota Material Handling
7310-4DR45
Reach Truck

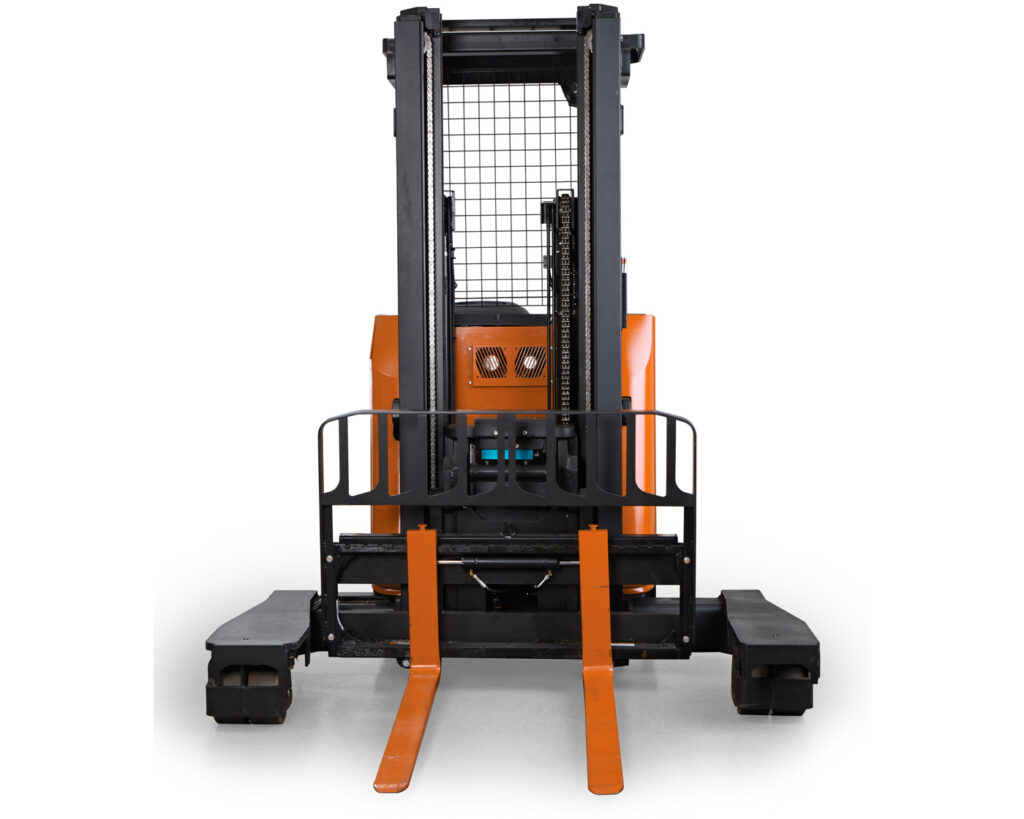

The 7310 4DR45 reach truck is a multi directional forklift that eliminates the need for right-angle turns, reducing the aisle width needed for long load handling and bulky loads.
Key Benefits
- Four-directional travel mode
- Outstanding maneuverability and efficiency
- Up to 4.5m fork-width
Turning Radius (mm)
2096
Lift Height (mm)
6807
Load Capacity (kg)
2043
Travel Speed, no load (km/h)
11,3
Application & Usage
| Application Usage | Stacking / Reaching; Horizontal transport |
| Suitable Areas | Warehouses |
| Operator Position | Standing |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 1931 |
| Width of Truck (mm) | 1969 |
| Turning Radius (mm) | 2096 |
| Overhead Guard Height (mm) | 2204 |
Lifting, Mast & Forks
| Fork Height (mm) | 77 |
| Fork Height, lowest (mm) | 76 |
| Free Lift (mm) | 1753 |
| Lift Height (mm) | 6807 |
| Lift Speed, no load (m/s) | 0,51 |
| Mast Height, extended (mm) | 7722 |
| Mast Height, lowered (mm) | 2210 |
| Pick Height | N/A |
| Order Picking Stand height (in) | N/A |
| Order Picking Stand height (mm) | N/A |
Capacity, Weight & Performance
| Load Capacity (kg) | 2043 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 2452 |
| Total Truck Height (mm) | 2210 |
| Travel Speed, no load (km/h) | 11,3 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage | 36 |
| Battery Capacity (Ah) | 1240 |
| Power Type | Lead acid |
| Transmission | N/A |
