7500

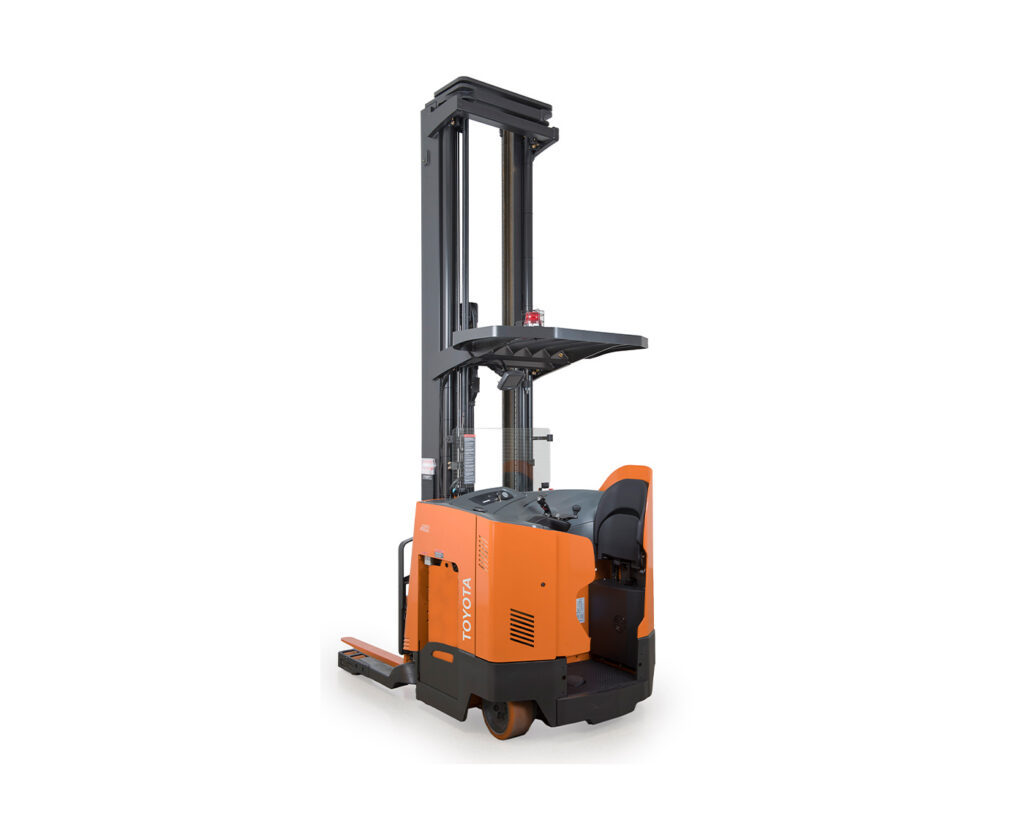

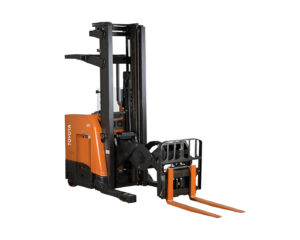

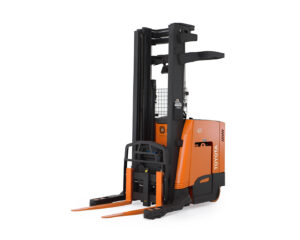

Deep-Reach truck, 1.45t
Toyota Material Handling
7500-DR32
Lead acid
You can count on the 7500-R35 Reach truck to work hard for you to increase selectivity and productivity. With our exclusive Universal Stance design and patented open view mast, the 7500 Reach forklift provides greater visibility whether traveling or load handling, and is ideal for narrow aisle and high rack applications.
Key Benefits
- Deep-Reach functionality
- Multifunction color touchscreen display
- Good visibility with open view mast
Application & Usage
| Application Usage | Horizontal transport; Stacking / Reaching |
| Suitable Areas | Warehouses |
| Operator Position | Standing |
| Usage Intensity | Medium-High |
| Transport Distance | Medium-Long |
Technical Specifications
| Length of Truck (mm) | 2116 |
| Width of Truck (mm) | 1080 |
| Turning Radius (mm) | 1920 |
| Overhead Guard Height (mm) | 2220 |
Lifting, Mast & Forks
| Fork Height (mm) | 77 |
| Fork Height, lowest (mm) | 76 |
| Free Lift (mm) | 2921 |
| Lift Height (mm) | 9448 |
| Lift Speed, no load (m/s) | 0,81 |
| Mast Height, extended (mm) | 10414 |
| Mast Height, lowered (mm) | 2261 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1451 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 2698 |
| Total Truck Height (mm) | 2260 |
| Travel Speed, no load (km/h) | 12,9 |
Power & Battery
| Battery Voltage | 36 |
| Battery Capacity (Ah) | 1240 |
