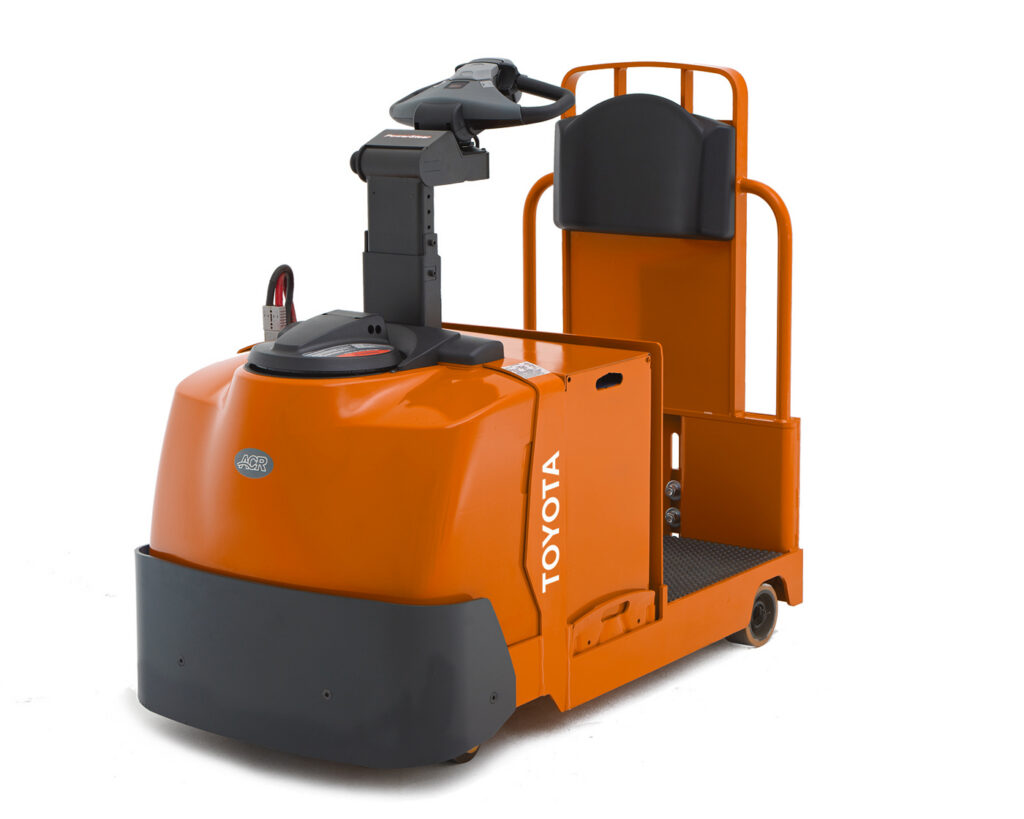

8610
Towing Tractor 4.5T
Toyota Material Handling
8610
Towing Tractor
This sturdy workhorse is designed to tow carts for batch order picking and horizontal transport. With durable construction and our energy-efficient ACR System, the 8610 Tow Tractor is engineered to handle high volume transport and order picking tasks with ease. The height-adjustable handle and standard PowerSteer puts the operator in control in our comfortable compartment.
Key Benefits
- Just-in-time delivery with batch picking of product to carts
- Walkthrough compartment for easy access to both sides of the aisle
- Low in-step height and comfortable driver compartment
Turning Radius (mm)
1412
Load Capacity (kg)
4540
Tow Weight/Max Drawbar Pull (kg)
4540
Travel Speed, no load (km/h)
14,5
Application & Usage
| Application Usage | Horizontal transport |
| Suitable Areas | Construction; Warehouses; Manufacturing |
| Operator Position | Standing |
| Usage Intensity | Medium-High |
| Transport Distance | Medium-Long |
Technical Specifications
| Length of Truck (mm) | 1505 |
| Width of Truck (mm) | 826 |
| Turning Radius (mm) | 1412 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | N/A |
| Fork Height, lowest (mm) | N/A |
| Free Lift (mm) | N/A |
| Lift Height (mm) | N/A |
| Lift Speed, no load (m/s) | N/A |
| Mast Height, extended (mm) | N/A |
| Mast Height, lowered (mm) | N/A |
| Pick Height | N/A |
| Order Picking Stand height (in) | N/A |
| Order Picking Stand height (mm) | N/A |
Capacity, Weight & Performance
| Load Capacity (kg) | 4540 |
| Load Center (mm) | N/A |
| Tow Weight/Max Drawbar Pull (kg) | 4540 |
| Truck Weight, w/o battery (kg) | 544 |
| Total Truck Height (mm) | 1055 |
| Travel Speed, no load (km/h) | 14,5 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 750 |
| Power Type | Lead acid |
| Transmission | N/A |
