8FBE

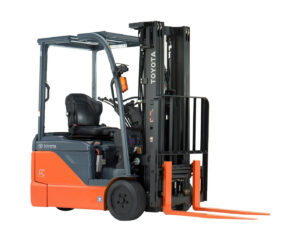

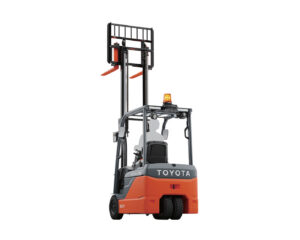

Toyota 8 Series 3 Wheel Electric CB 1.0T
Toyota Material Handling
8FBE10
Electric Counterbalance Truck
A multi-talented electric forklift with outstanding turning performance, excellent stability, and operability. The compact body grants it access to every part of your operation, where it creates solutions for every material handling need.
Key Benefits
- Extreme ease of use
- Enhanced safety features
- Advanced operability and comfort
- Support for various material handling operations
Turning Radius (mm)
1385
Lift Height (mm)
N/A
Load Capacity (kg)
1000
Travel Speed, no load (km/h)
16,5
Application & Usage
| Application Usage | Horizontal transport; Stacking / Reaching |
| Suitable Areas | Manufacturing; Stores / Supermarkets; Warehouses |
| Operator Position | Seated |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 1750 |
| Width of Truck (mm) | 1075 |
| Turning Radius (mm) | 1385 |
| Overhead Guard Height (mm) | 1980 |
Lifting, Mast & Forks
| Fork Height (mm) | N/A |
| Fork Height, lowest (mm) | N/A |
| Free Lift (mm) | N/A |
| Lift Height (mm) | N/A |
| Lift Speed, no load (m/s) | N/A |
| Mast Height, extended (mm) | N/A |
| Mast Height, lowered (mm) | N/A |
| Pick Height | N/A |
| Order Picking Stand height (in) | N/A |
| Order Picking Stand height (mm) | N/A |
Capacity, Weight & Performance
| Load Capacity (kg) | 1000 |
| Load Center (mm) | 500 |
| Truck Weight, w/o battery (kg) | N/A |
| Total Truck Height (mm) | N/A |
| Travel Speed, no load (km/h) | 16,5 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage, en-US | 48 |
| Battery Capacity (Ah) | 370 |
| Power Type | Lead acid; Li-ion |
| Transmission | N/A |
