8FBN
Toyota 8 Series 4 Wheel Electric CB 1.8t N
Toyota Material Handling
8FBN18
Electric Counterbalance Truck

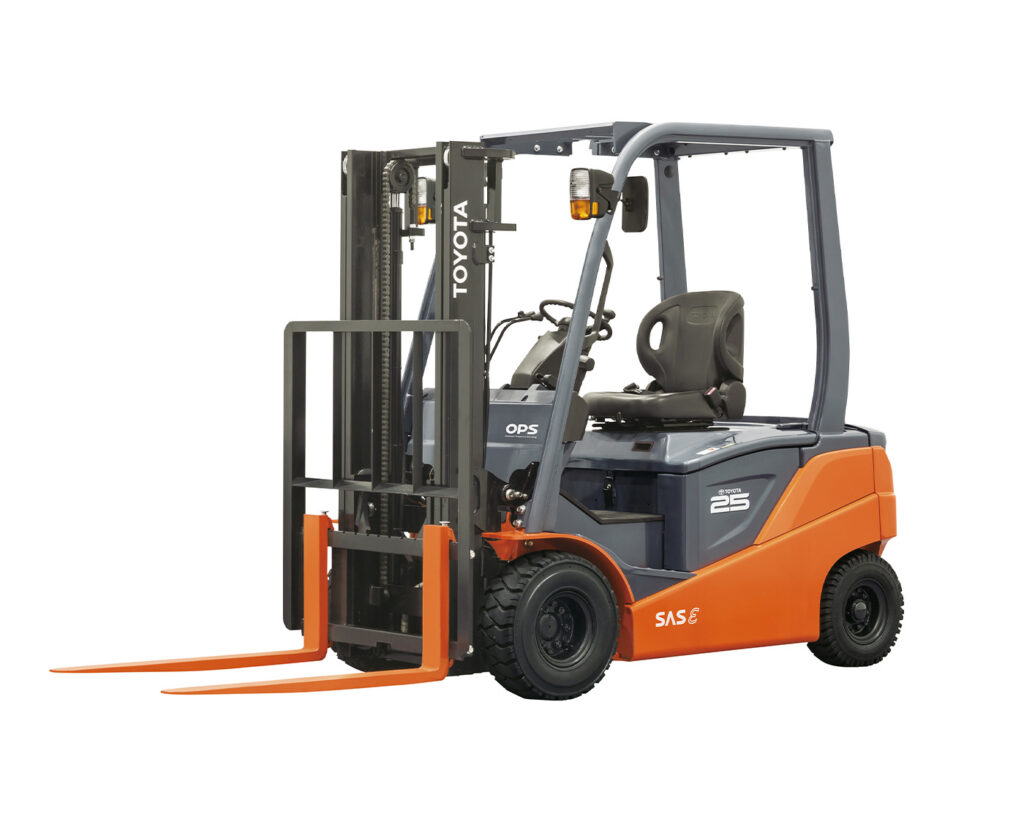

8FBN is an electric forklift designed for excellent load stability and balanced steering. This flexible and easy-to-use forklift also offers high performance and low operating costs - making it a popular choice for many different operations.
Key Benefits
- Advanced safety and water resistant IPX- 4
- Management support
- Outstanding operability
- High productivity and efficiency
Turning Radius (mm)
1780
Lift Height (mm)
N/A
Load Capacity (kg)
1750
Travel Speed, no load (km/h)
17.5
Application & Usage
| Application Usage | Horizontal transport; Stacking / Reaching |
| Suitable Areas | Stores / Supermarkets; Warehouses |
| Operator Position | Seated |
| Usage Intensity | Medium-High |
| Transport Distance | Medium-Long |
Technical Specifications
| Length of Truck (mm) | 2115 |
| Width of Truck (mm) | 1065 |
| Turning Radius (mm) | 1780 |
| Overhead Guard Height (mm) | 2095 |
Lifting, Mast & Forks
| Fork Height (mm) | N/A |
| Fork Height, lowest (mm) | N/A |
| Free Lift (mm) | N/A |
| Lift Height (mm) | N/A |
| Lift Speed, no load (m/s) | N/A |
| Mast Height, extended (mm) | N/A |
| Mast Height, lowered (mm) | N/A |
Capacity, Weight & Performance
| Load Capacity (kg) | 1750 |
| Load Center (mm) | 500 |
| Truck Weight, w/o battery (kg) | N/A |
| Total Truck Height (mm) | N/A |
| Travel Speed, no load (km/h) | 17.5 |
Power Source
| Battery Voltage, en-US | 48 |
| Battery Capacity (Ah) | 565 |
| Power Type | Lead acid; Li-ion |
