BT Optio N-series

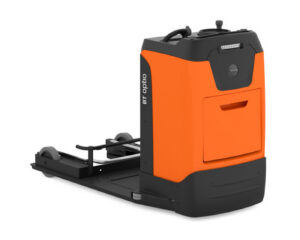

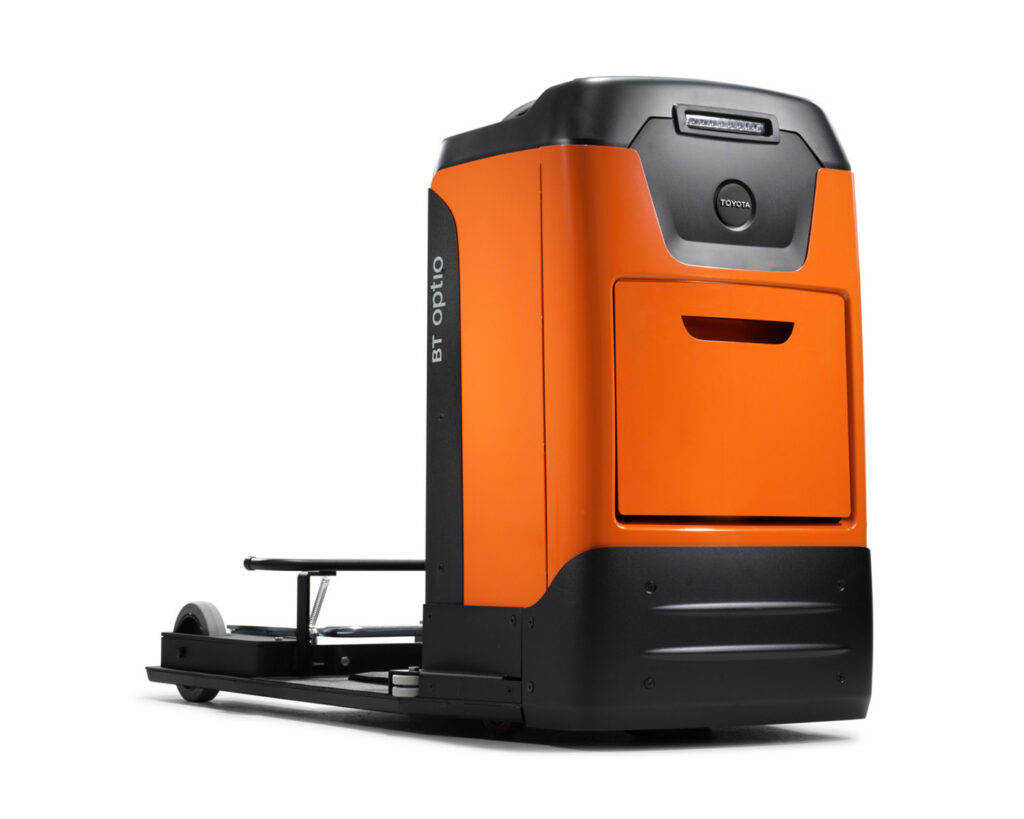

BT Optio 1T Narrow
Toyota Material Handling
TSE100W-709
Order Pickers
The BT Optio N-series trucks are lightweight and very compact, suitable for use in a great range of environments. They feature a very low step-in and easy trailer connection. Works with traditional hook-on trailers.
Key Benefits
- For picking operations
- Unique docking system, the truck and the trolley/trailer becomes one unit
- Suited for light and medium duty applications
- Easy and safe stepping on & off
Turning Radius (mm)
1432
Lift Height (mm)
N/A
Load Capacity (kg)
1000
Travel Speed, no load (km/h)
12
Application & Usage
| Application Usage | Horizontal transport; Order picking |
| Suitable Areas | Warehouses |
| Operator Position | Standing |
| Usage Intensity | Low-Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 1583 |
| Width of Truck (mm) | 747 |
| Turning Radius (mm) | 1432 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | N/A |
| Fork Height, lowest (mm) | N/A |
| Free Lift (mm) | N/A |
| Lift Height (mm) | N/A |
| Lift Speed, no load (m/s) | N/A |
| Mast Height, extended (mm) | N/A |
| Mast Height, lowered (mm) | N/A |
| Pick Height | N/A |
| Order Picking Stand height (in) | 2,7 |
| Order Picking Stand height (mm) | 70 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1000 |
| Truck Weight, w/o battery (kg) | 185 |
| Total Truck Height (mm) | 1091 |
| Travel Speed, no load (km/h) | 12 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 105 |
| Power Type | Lead acid; Li-ion |
| Transmission | N/A |
Related Models (BT Optio N-series Series)
BT Optio 1T Wide
The BT Optio N-series trucks are lightweight and very compact, suitable for use in a great range ...

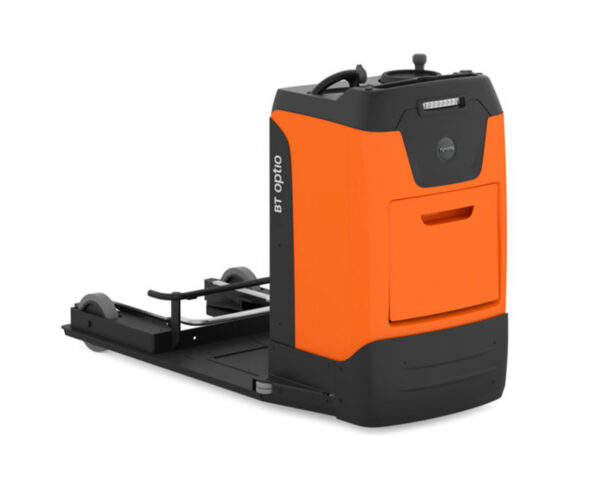

BT Optio 1T
