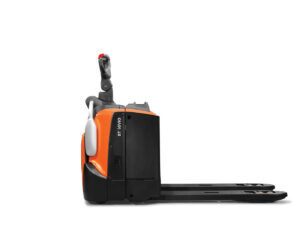

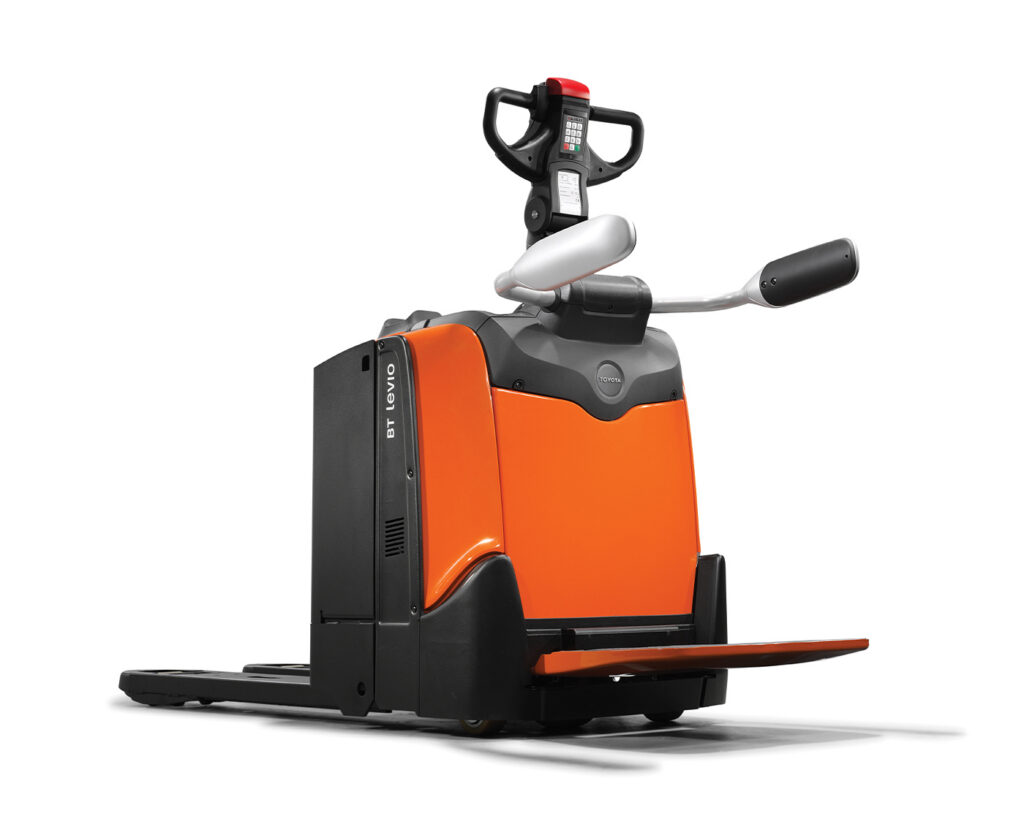

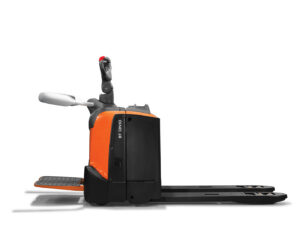

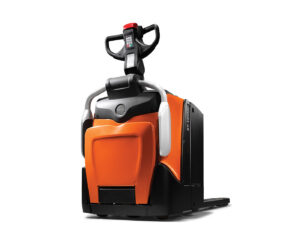

BT Levio P-series
BT Levio 2.2T with Platform
Toyota Material Handling
LPE220
Powered Pallet Truck
The BT Levio powered pallet trucks combine high load capacities with operator platforms and class-leading compactness. The result is an extremely maneuverable machine with the smallest turning radius in its class – combined with the highest maximum speed, at up to 10 km/h, for outstanding productivity.
Key Benefits
- High speed and high capacity for heavy-duty usage
- Foldable safety side gates
- Speed control when cornering
- Quietest truck in it's class
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1632
Lift Height (mm)
205
Load Capacity (kg)
2200
Travel Speed, no load (km/h)
10
Application & Usage
| Application Usage | Horizontal transport; Loading / Unloading |
| Suitable Areas | Manufacturing; Warehouses |
| Operator Position | Flip-down Platform |
| Usage Intensity | Medium-High |
| Transport Distance | Medium-Long |
Technical Specifications
| Length of Truck (mm) | 714 |
| Width of Truck (mm) | 730 |
| Turning Radius (mm) | 1632 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 85 |
| Fork Height, lowest (mm) | 85 |
| Free Lift (mm) | N/A |
| Lift Height (mm) | 205 |
| Lift Speed, no load (m/s) | N/A |
| Mast Height, extended (mm) | N/A |
| Mast Height, lowered (mm) | N/A |
| Pick Height | N/A |
| Order Picking Stand height (in) | N/A |
| Order Picking Stand height (mm) | N/A |
Capacity, Weight & Performance
| Load Capacity (kg) | 2200 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 521 |
| Total Truck Height (mm) | 1100 |
| Travel Speed, no load (km/h) | 10 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 600 |
| Power Type | Lead acid; Li-ion |
| Transmission | N/A |
