BT Levio W-series

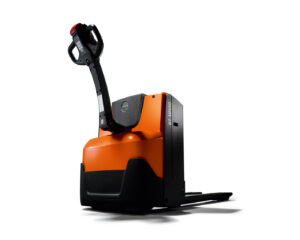

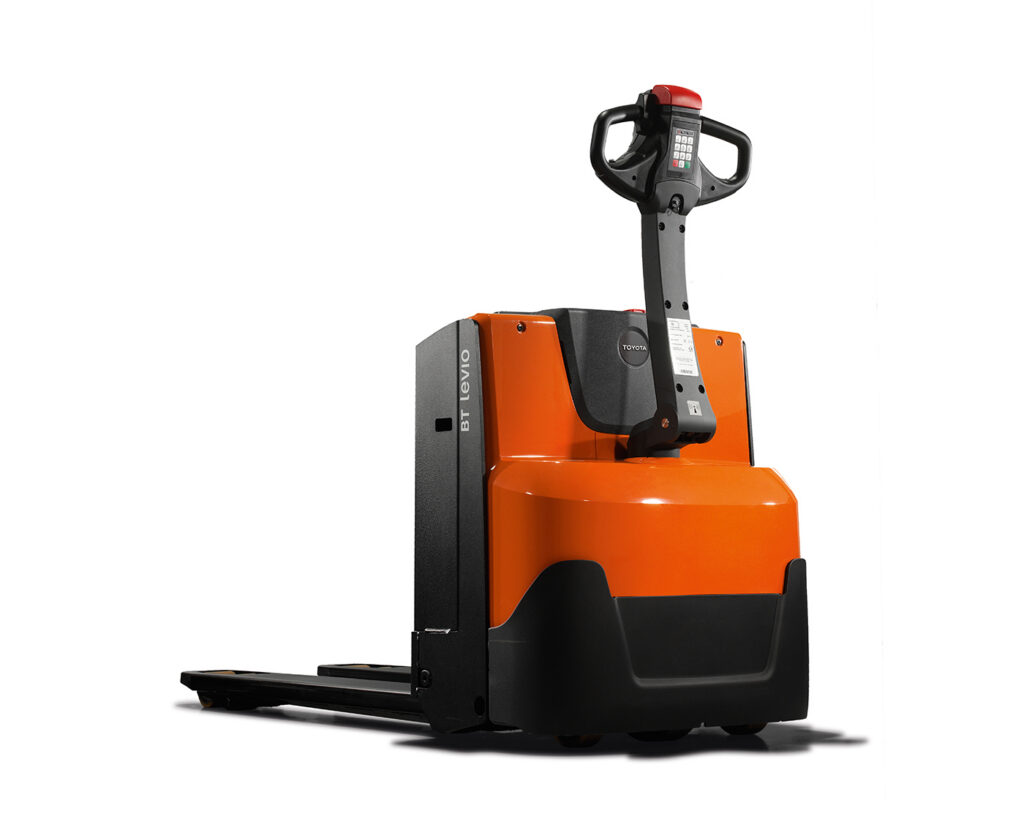

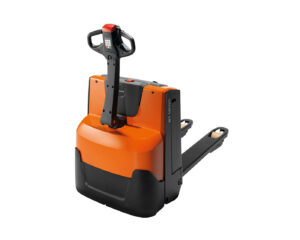

BT Levio 1.4t
Toyota Material Handling
LWE140
Pallet Trucks Levio
Looking for an easy-to-use solution suitable for all types of applications? Designed to be easy to use and feature an ergonomic tiller arm with fingertip controls. In tight spaces, the truck can be easily manoeuvred using the tiller arm in the upright position (Click-2-Creep).
Key Benefits
- Small and lightweight for light intensity usage
- Click-2-Creep for easy creep travel
- Clear view of the forks
- Fingertip controls
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1429
Lift Height (mm)
205
Load Capacity (kg)
1400
Travel Speed, no load (km/h)
6
Application & Usage
| Application Usage | Horizontal transport; Loading / Unloading |
| Suitable Areas | Onboard vehicles; Stores / Supermarkets; Warehouses |
| Operator Position | Walk With |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 481 |
| Width of Truck (mm) | 726 |
| Turning Radius (mm) | 1429 |
Lifting, Mast & Forks
| Fork Height (mm) | 85 |
| Fork Height, lowest (mm) | 85 |
| Lift Height (mm) | 205 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1400 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 275 |
| Total Truck Height (mm) | 1235 |
| Travel Speed, no load (km/h) | 6 |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 225 |
| Power Type | Lead acid; Li-ion |
