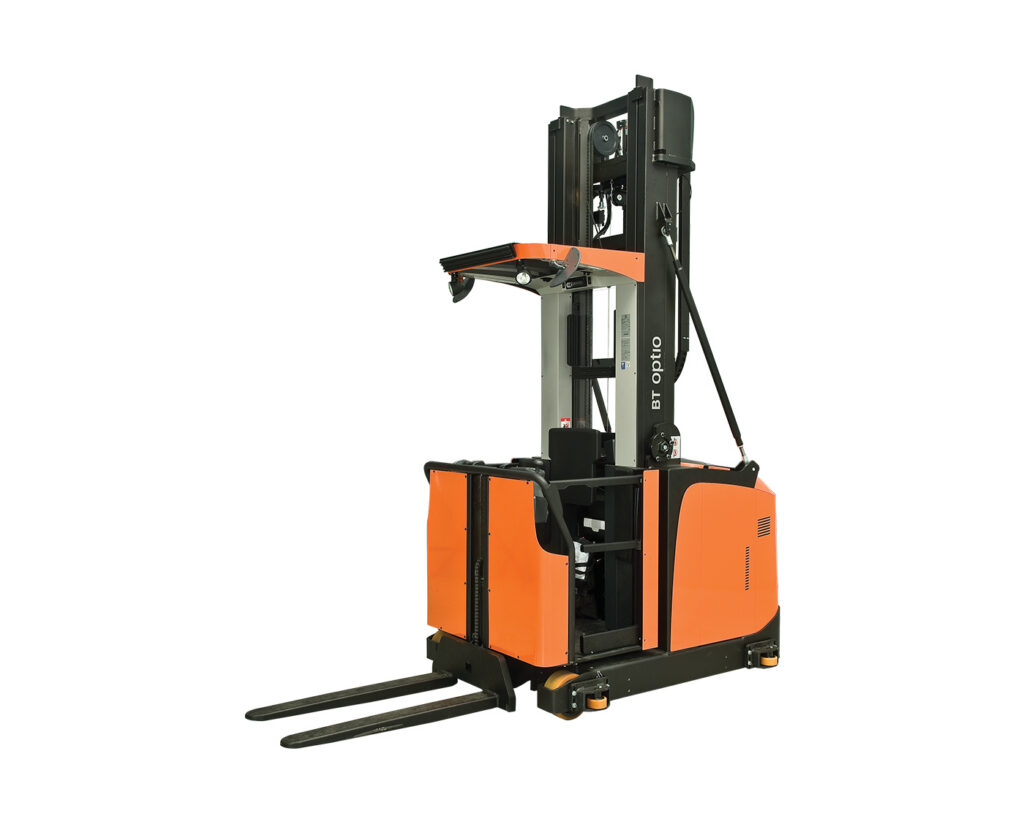

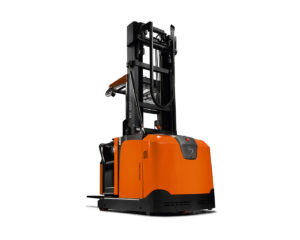

BT Optio H-series
BT Optio 1T High Level
Toyota Material Handling
OME100H
Order Pickers
The BT Optio H-series sets a new standard in high-level order picking. It offers the highest-level picking in its class, despite its compact design, and allows maximum operational flexibility.
Key Benefits
- Compact high-level order picker with great operational flexibility and picking height up to 12.1
- Equipped with initial lift for ergonomic working height.
- Excellent all-round visibility
- Comfortable cabin with height-adjustable controls to fit different operators.
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1689
Lift Height (mm)
11137
Load Capacity (kg)
1000
Travel Speed, no load (km/h)
12
Application & Usage
| Application Usage | Order Picking |
| Suitable Areas | Warehouses |
| Operator Position | Standing |
| Usage Intensity | Medium-High |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 1892 |
| Width of Truck (mm) | 1250 |
| Turning Radius (mm) | 1689 |
| Overhead Guard Height (mm) | 2402 |
Lifting, Mast & Forks
| Fork Height (mm) | 52 |
| Fork Height, lowest (mm) | N/A |
| Free Lift (mm) | N/A |
| Lift Height (mm) | 11137 |
| Lift Speed, no load (m/s) | 0,4 |
| Mast Height, extended (mm) | 12600 |
| Mast Height, lowered (mm) | 2657 |
| Pick Height | N/A |
| Order Picking Stand height (in) | 413.4 |
| Order Picking Stand height (mm) | 10500 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1000 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 2258 |
| Total Truck Height (mm) | 3152 |
| Travel Speed, no load (km/h) | 12 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage | 48 |
| Battery Capacity (Ah) | 620 |
| Power Type | Lead acid; Li-ion |
| Transmission | N/A |
Related Models (BT Optio H-series Series)

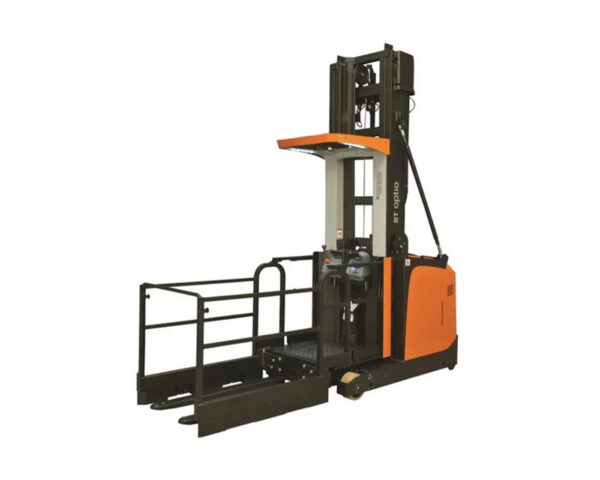

BT Optio 1.2T High Level Walk Through
