BT Reflex N-series
BT Reflex 1.4t Narrow
Toyota Material Handling
RRE140HN
Reach Truck

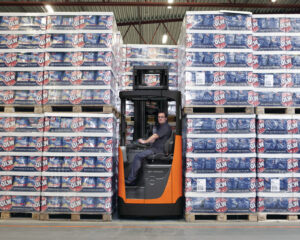

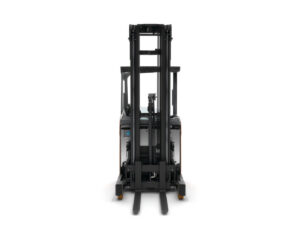

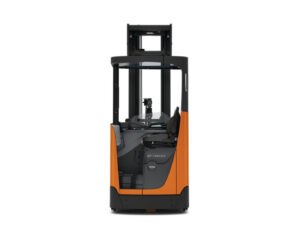

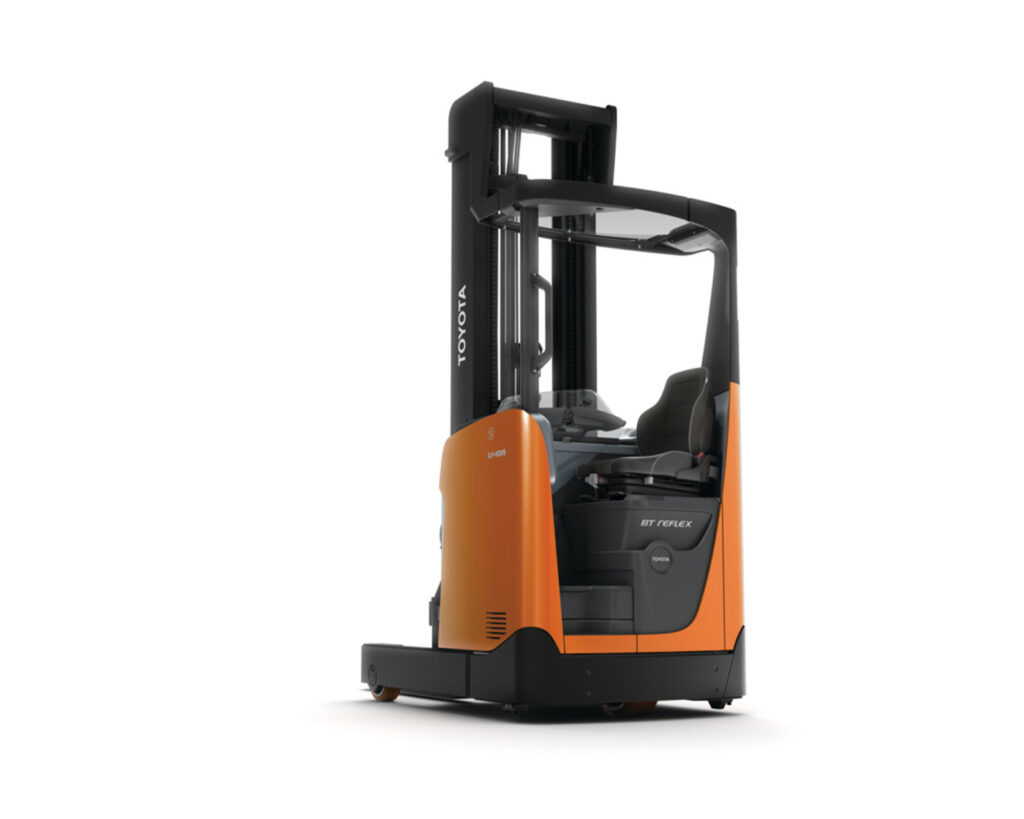

The BT Reflex RRE140HN is a reach truck with a narrow chassis designed for stacking in confined areas. This model is highly productive without compromising the driver’s comfort thanks to its low step-in height and excellent visibility.
Key Benefits
- Narrow-width reach truck ideal for tight areas, block stacking or drive-in racking
- The patented overhead guard provides a clear view of the fork tips when working at height
- Logical layout of the controls
- 360° steering allows for fast work cycles and smooth driving
Turning Radius (mm)
1604
Lift Height (mm)
10000
Load Capacity (kg)
1400
Travel Speed, no load (km/h)
14
Application & Usage
| Application Usage | Horizontal transport; Stacking / Reaching |
| Suitable Areas | Manufacturing; Warehouses |
| Operator Position | Seated |
| Usage Intensity | Medium-High |
| Transport Distance | Medium-Long |
Technical Specifications
| Length of Truck (mm) | 1263 |
| Width of Truck (mm) | 1120 |
| Turning Radius (mm) | 1604 |
| Overhead Guard Height (mm) | 2198 |
Lifting, Mast & Forks
| Fork Height (mm) | 40 |
| Fork Height, lowest (mm) | 55 |
| Free Lift (mm) | 3403 |
| Lift Height (mm) | 10000 |
| Lift Speed, no load (m/s) | 0,92 |
| Mast Height, extended (mm) | 10540 |
| Mast Height, lowered (mm) | 2187 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1400 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 2680 |
| Total Truck Height (mm) | - |
| Travel Speed, no load (km/h) | 14 |
Power Source
| Battery Voltage | 48 |
| Battery Capacity (Ah) | 620 |
| Power Type | Lead acid; Li-ion |
