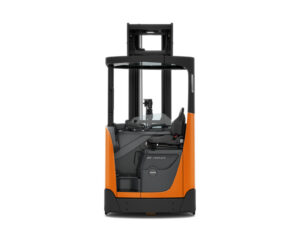

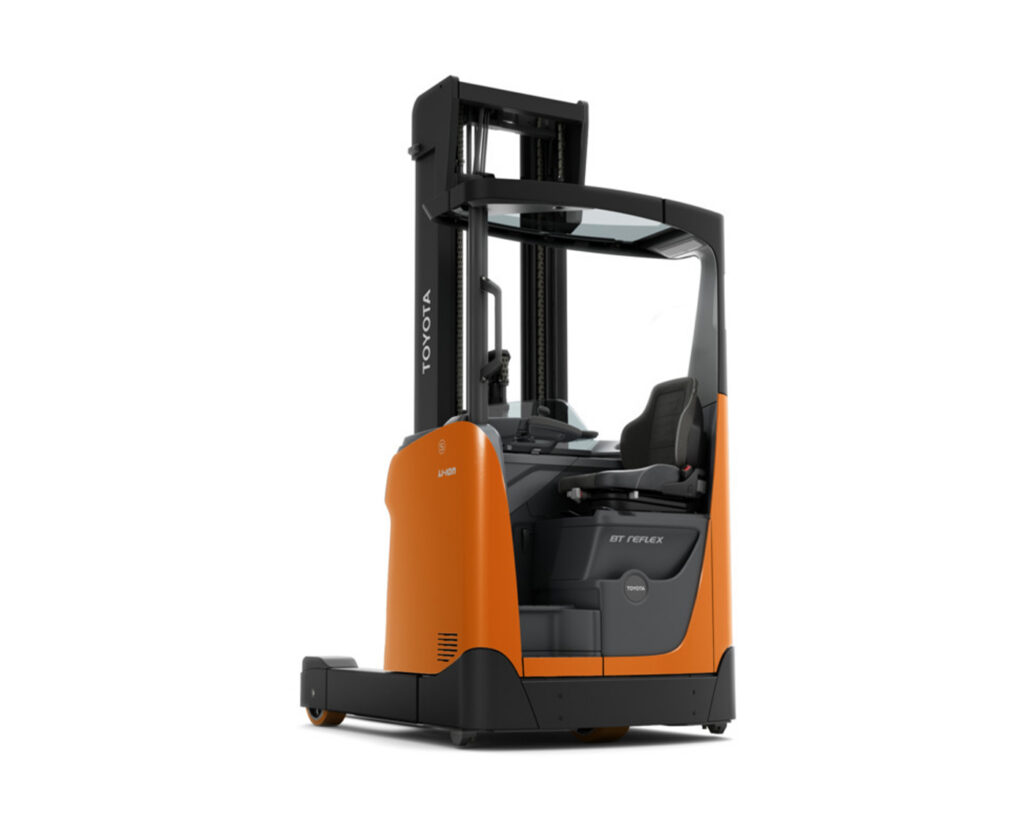

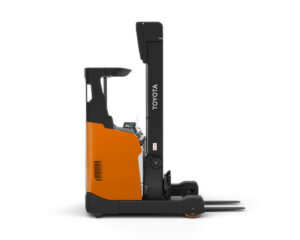

BT Reflex R-series
BT Reflex 1.6t High-performance
Toyota Material Handling
RRE160H
Reach Truck

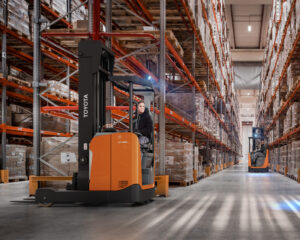

Looking for a reach truck with high performance? BT Reflex 1.6 tonnes are a high performance truck that have exceptional and unique features when working at height, allowing high-speed operation for maximum productivity without compromising safety for the driver and security for the load.
Key Benefits
- High lifting reach truck for demanding applications
- The patented overhead guard provides a clear view of the fork tips when working at height
- Highly ergonomic driver compartment
- 360° steering allows for fast work cycles and smooth driving
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1573
Lift Height (mm)
11000
Load Capacity (kg)
1600
Travel Speed, no load (km/h)
14
Application & Usage
| Application Usage | Horizontal transport; Stacking / Reaching |
| Suitable Areas | Manufacturing; Warehouses |
| Operator Position | Seated |
| Usage Intensity | High |
| Transport Distance | Medium-Long |
Technical Specifications
| Length of Truck (mm) | 1263 |
| Width of Truck (mm) | 1270 |
| Turning Radius (mm) | 1573 |
| Overhead Guard Height (mm) | 2198 |
Lifting, Mast & Forks
| Fork Height (mm) | 55 |
| Fork Height, lowest (mm) | 55 |
| Free Lift (mm) | 3737 |
| Lift Height (mm) | 11000 |
| Lift Speed, no load (m/s) | 0,92 |
| Mast Height, extended (mm) | 11542 |
| Mast Height, lowered (mm) | 2187 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1600 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 2713 |
| Total Truck Height (mm) | - |
| Travel Speed, no load (km/h) | 14 |
Power Source
| Battery Voltage | 48 |
| Battery Capacity (Ah) | 930 |
| Power Type | Lead acid; Li-ion |
