BT Reflex O-series
BT Reflex 1.6t Indoor/Outdoor
Toyota Material Handling
RRE160HR
Reach Truck

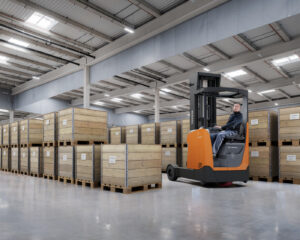

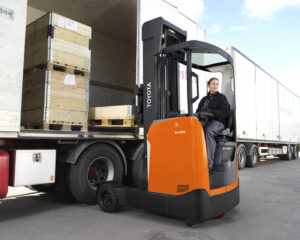

Looking for a versatile reach truck? With 145 mm ground clearance and super-elastic tyres for indoor and outdoor operation, BT Reflex O-series trucks are designed and built for complete versatility. For example, block stacking in yards, servicing outdoor racking and unloading curtain-side trailers.
Key Benefits
- Versatile high-performing reach truck for indoor and outdoor
- Fully enclosed cabin for increased comfort in outdoor conditions
- Super-elastic tyres for work on uneven floors
- Highly ergonomic driver compartment
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1683
Lift Height (mm)
7500
Load Capacity (kg)
1600
Travel Speed, no load (km/h)
12
Application & Usage
| Application Usage | Loading / Unloading; Stacking / Reaching; Horizontal transport |
| Suitable Areas | Outside adapted; Warehouses; Manufacturing |
| Operator Position | Seated |
| Usage Intensity | Medium-High |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 1344 |
| Width of Truck (mm) | 1414 |
| Turning Radius (mm) | 1683 |
| Overhead Guard Height (mm) | 2330 |
Lifting, Mast & Forks
| Fork Height (mm) | 55 |
| Fork Height, lowest (mm) | 55 |
| Free Lift (mm) | 2571 |
| Lift Height (mm) | 7500 |
| Lift Speed, no load (m/s) | 0,68 |
| Mast Height, extended (mm) | 8111 |
| Mast Height, lowered (mm) | 2257 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1600 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 2937 |
| Total Truck Height (mm) | - |
| Travel Speed, no load (km/h) | 12 |
Power Source
| Battery Voltage | 48 |
| Battery Capacity (Ah) | 620 |
| Power Type | Lead acid; Li-ion |
