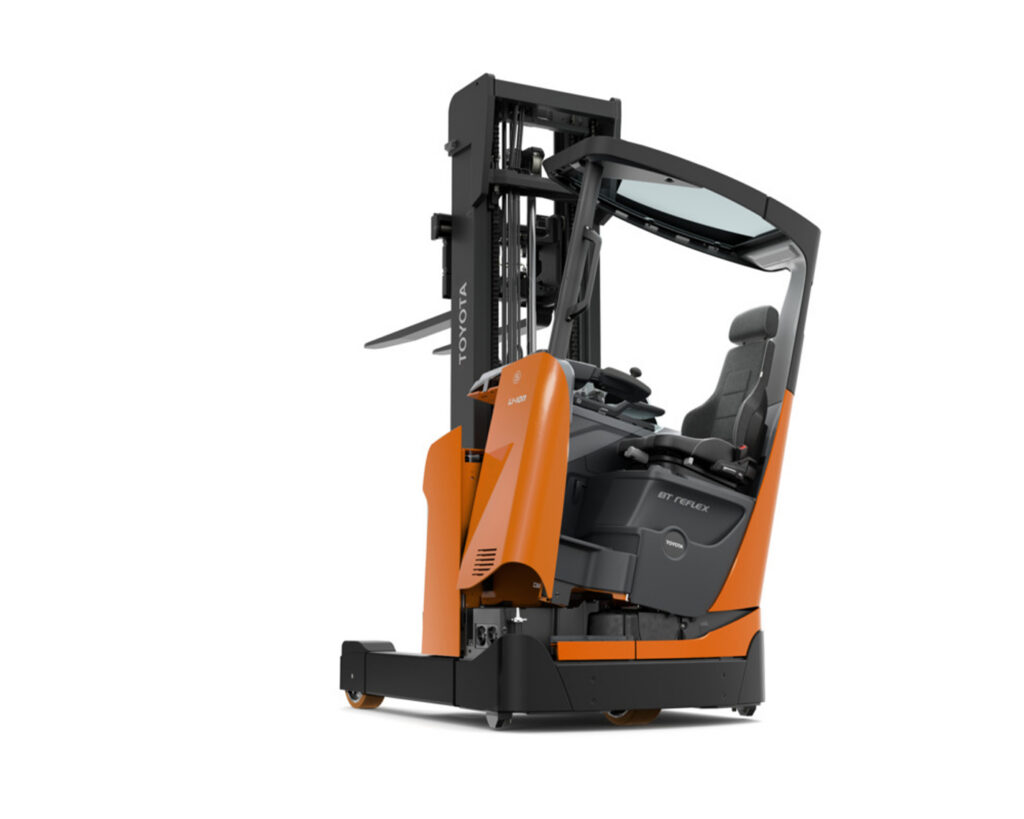

BT Reflex E-series
BT Reflex 2t with Tilting Cab
Toyota Material Handling
RRE200HE
Reach Truck
Looking for a high performance reach truck designed for high level work that allows clear view on the forks and reduces strain for the driver? The RRE200HE features a unique tilting cab system, which reduces neck and shoulder strain and allows faster and more accurate fork positioning.
Key Benefits
- High lifting reach truck with unique tilting cab for demanding repetitive high-level work
- The patented overhead guard provides a clear view of the fork tips when working at height
- Highly ergonomic driver compartment
- 360° steering allows for fast work cycles and smooth driving
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1777
Lift Height (mm)
13000
Load Capacity (kg)
2000
Travel Speed, no load (km/h)
14
Application & Usage
| Application Usage | Horizontal transport; Stacking / Reaching |
| Suitable Areas | Manufacturing; Warehouses |
| Operator Position | Seated |
| Usage Intensity | Medium-High |
| Transport Distance | Medium-Long |
Technical Specifications
| Length of Truck (mm) | 1344 |
| Width of Truck (mm) | 1270 |
| Turning Radius (mm) | 1777 |
| Overhead Guard Height (mm) | 2261 |
Lifting, Mast & Forks
| Fork Height (mm) | 55 |
| Fork Height, lowest (mm) | 55 |
| Free Lift (mm) | 4449 |
| Lift Height (mm) | 13000 |
| Lift Speed, no load (m/s) | 0,68 |
| Mast Height, extended (mm) | 13545 |
| Mast Height, lowered (mm) | 2249 |
Capacity, Weight & Performance
| Load Capacity (kg) | 2000 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 3216 |
| Total Truck Height (mm) | - |
| Travel Speed, no load (km/h) | 14 |
Power Source
| Battery Voltage | 48 |
| Battery Capacity (Ah) | 930 |
| Power Type | Lead acid; Li-ion |
