BT Staxio W-series

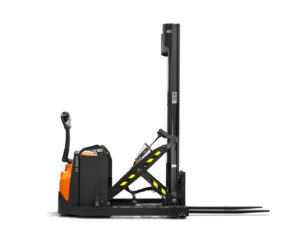

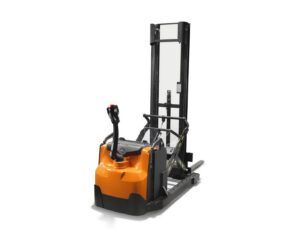

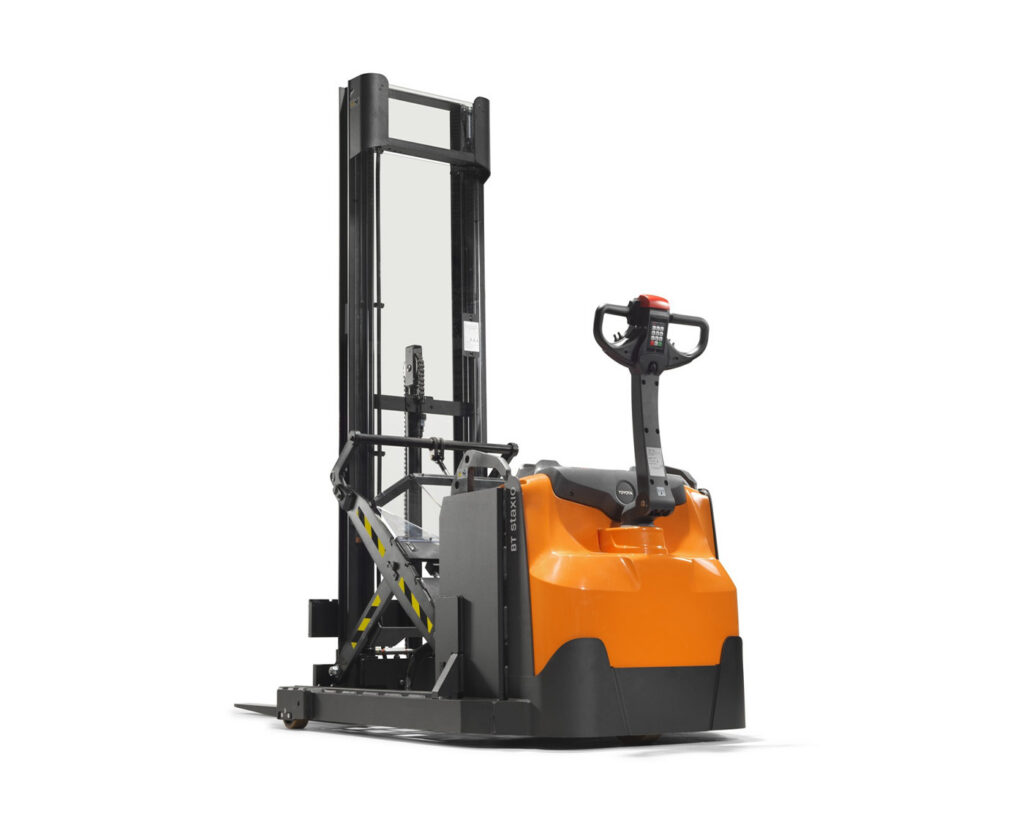

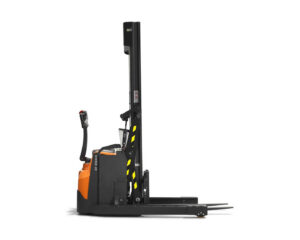

BT Staxio 1.2t with Retractable Mast
Toyota Material Handling
SWE120XR
Powered Stacker
Combining the compactness of a stacker with the flexibility of a reach truck results in a versatile solution that can handle any pallet type. This pedestrian stacker is ideal for use in narrow aisles, saving storage space and costs.
Key Benefits
- Combines the compactness of a stacker with the flexibility of a reach truck
- Ideal for working in narrow areas, saving storage space and increasing efficiency
- Ergonomic tiller arm
- Click-2-Creep manoeuvrability and BT Powerdrive for ease of use
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1670
Lift Height (mm)
5400
Load Capacity (kg)
1200
Travel Speed, no load (km/h)
6
Application & Usage
| Application Usage | Horizontal transport; Loading / Unloading; Stacking / Reaching |
| Suitable Areas | Manufacturing; Stores / Supermarkets; Warehouses |
| Operator Position | Walk With |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 995 |
| Width of Truck (mm) | 1085 |
| Turning Radius (mm) | 1670 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 50 |
| Fork Height, lowest (mm) | 50 |
| Free Lift (mm) | 2142 |
| Lift Height (mm) | 5400 |
| Lift Speed, no load (m/s) | 0,36 |
| Mast Height, extended (mm) | 5920 |
| Mast Height, lowered (mm) | 1740 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1200 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 1560 |
| Total Truck Height (mm) | 1360 |
| Travel Speed, no load (km/h) | 6 |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 300 |
| Power Type | Lead acid; Li-ion |
