Tracto N-series

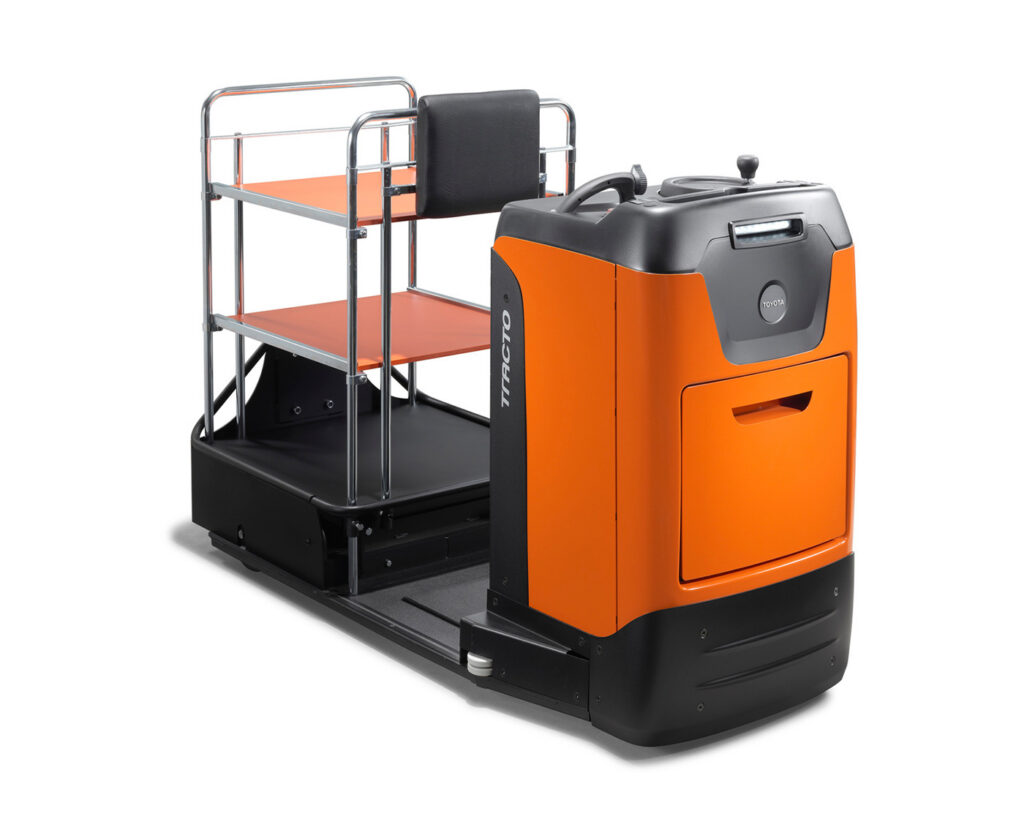

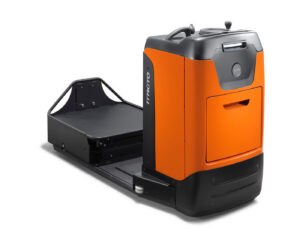

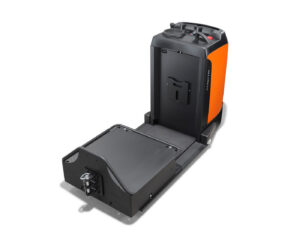

Toyota Tracto 1.5t with Step, Shelf or Cargo System
Toyota Material Handling
TSE150-728
Towing Tractor
The Toyota Tracto N-series models are lightweight and very compact, suitable for use in many different applications. They feature a very low step-in height and easy trolley connection. Works together with traditional hook-on trolleys that can be combined in a towing train.
Key Benefits
- For horizontal transport
- Available with several different types of towing devices
- Suited for light and medium duty applications
- Narrow chassis design
- Easy and safe stepping on & off
Turning Radius (mm)
1432
Lift Height (mm)
N/A
Load Capacity (kg)
1500
Travel Speed, no load (km/h)
12
Application & Usage
| Application Usage | Horizontal transport; Order picking |
| Suitable Areas | Manufacturing; Warehouses |
| Operator Position | Standing |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 1760 |
| Width of Truck (mm) | 747 |
| Turning Radius (mm) | 1432 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | N/A |
| Fork Height, lowest (mm) | N/A |
| Free Lift (mm) | N/A |
| Lift Height (mm) | N/A |
| Lift Speed, no load (m/s) | N/A |
| Mast Height, extended (mm) | N/A |
| Mast Height, lowered (mm) | N/A |
Capacity, Weight & Performance
| Load Capacity (kg) | 1500 |
| Load Center (mm) | N/A |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
| Truck Weight, w/o battery (kg) | 320 |
| Total Truck Height (mm) | 1091 |
| Travel Speed, no load (km/h) | 12 |
Power Source
| Battery Voltage, en-US | 24 |
| Battery Capacity (Ah) | 105 |
| Power Type | Lead acid; Li-ion |
