Toyota Material Handling

Stand-in Stacker Truck - 1.6 ton capacity

Stand-in Stacker Truck
BT Staxio S-Series SSI 160LN

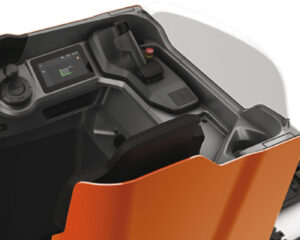

Introducing the BT Staxio S-series Stand-in Stacker Truck, the perfect solution for stacking and retrieving goods in various warehouse and industrial settings. With a 1.6-ton weight capacity, it effortlessly lifts and transports your loads. The advanced lithium-ion energy system ensures continuous operation. The stand-in design prioritizes operator comfort and convenience, featuring an ergonomic platform for improved visibility and control. Key benefits include an adjustable sit/stand chair, driver detection system, carefree Li-ion energy solution, a multifunction color touchscreen and convenient fingertip controls.

DOWNLOAD BROCHURE ENQUIRE
Dimensions+
Height, mast lowered h12371 mm
Free lift h21894 mm
Lift h35310 mm
Height, mast extended h45916 mm
Initial Lift h5120 mm
Height of overhead guard (cabin) 23502350 mm
Stand height h7262 mm
Height, fork lowered h1390 mm
Overall length l12180 mm
Length to face of forks l21030 mm
Overall width b1790 mm
Fork dimensions s/e/l70/180/1150 mm
Width over forks b5570 mm
Ground clearance, center of wheelbase m119,5 mm
Aisle width for pallets 1000x1200 crossways2615 mm
Aisle width for pallets 800x1200 crosswa Astys2588 mm
Turning radius Wa1740 mm
Lift height5400 mm
Identification+
ManufacturerToyota
ModelSSI160LN
DriveElectric
Operator typeStand-in
Load capacity/rated load -- Q1600+2000 kg
Load center - c600 mm
Load distance (support arms raised/lowered) - x659/690 mm
Wheelbase (support arms raised/lowered) - y1508/1539 mm
Motor Information+
Drive motor rating S2 60 min2,8 kw
Lift motor rating (S3 15%) / for 200DN (S3 8.5 at 150 bar)3 kw
Battery voltage/nominal capacity K524/210, 300, 420 v-ah
Battery weight29, 44, 58 kg
Energy consumption according to EN167960,77 kwh-h
Others+
Type of drive controlVariable AC
Sound level at the driver's ear according to EN1205367 db-a
Performance data+
Travel speed, with/without load8/10 km-h
Lift speed, with/without load0,17 / 0,36 m-s
Lowering speed, with/without load0,45 / 0,47 m-s
Max. gradeability, with/without load 1)8/12 82
Acceleration time (over 10 m)5,5 s
Service brakeElectromagnetic
Weight+
Service weight without battery1637 kg
Axle load, with load, drive/castor/support arm wheel571/521/2097 kg
Axle load, without load, drive/castor/support arm wheel621/397/563 kg
Wheels+
Drive/castor/fork wheelPolyurethane*
Wheel size, frontø250x92 mm
Wheel size, rearø85x74 mm
Additional wheel sizeø140x86 mm
Wheels, number front/rear (X = driven wheels)2(1X) / 4
Track width, front -- b10460 mm
Track width, rear -- b11390 mm
