BT Staxio W-series

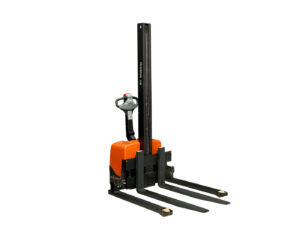

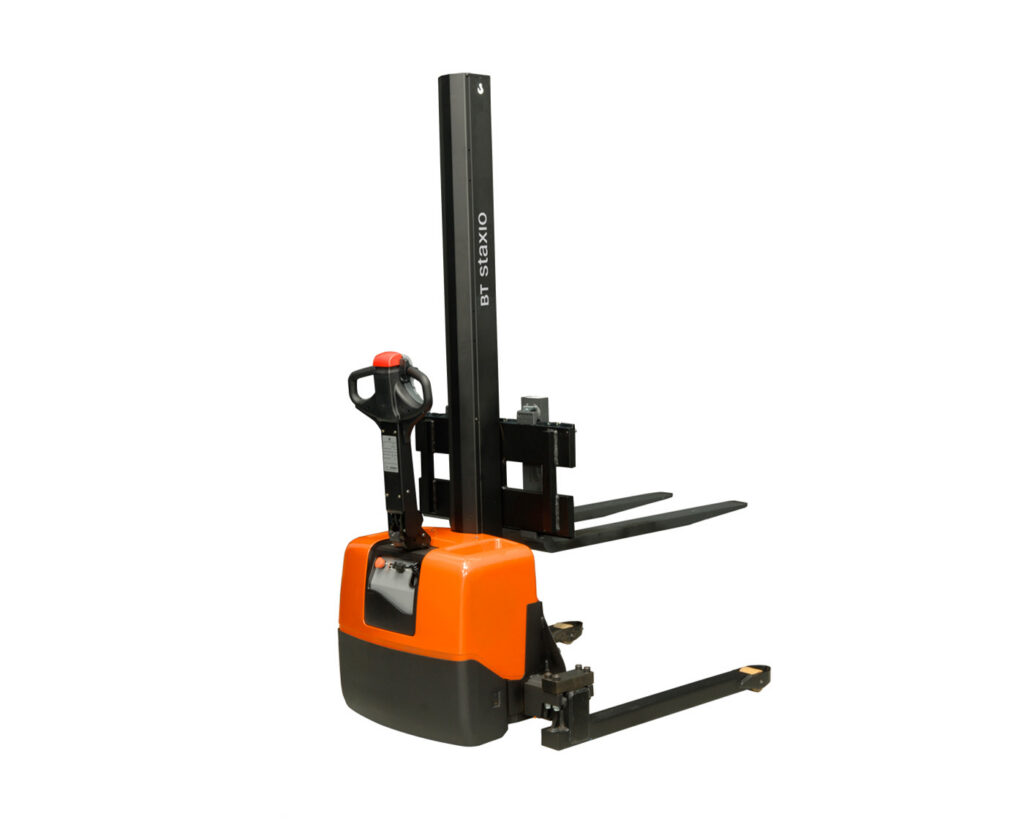

BT Staxio 1t Compact Straddle
Toyota Material Handling
HWE100S
Powered Stacker
Looking for a compact stacker for handling different pallet sizes? Our BT Staxio HWE is a lightweight powered stacker truck with adjustable straddle forks can handle a variety of pallet sizes. With a load capacity of one tonne, this stacker is suitable for a variety of applications and provides simple as well as safe pallet movement and enhanced manoeuvrability.
Key Benefits
- Adjustable fork width
- Lightweight and compact
- Easy to maintain
- Automatic height adjustment (option)
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1365
Lift Height (mm)
1540
Load Capacity (kg)
1000
Travel Speed, no load (km/h)
5.5
Application & Usage
| Application Usage | Horizontal transport; Stacking / Reaching |
| Suitable Areas | Onboard vehicles; Stores / Supermarkets; Warehouses |
| Operator Position | Walk With |
| Usage Intensity | Low-Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 572 |
| Width of Truck (mm) | 1100 |
| Turning Radius (mm) | 1365 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 50 |
| Fork Height, lowest (mm) | 50 |
| Free Lift (mm) | N/A |
| Lift Height (mm) | 1540 |
| Lift Speed, no load (m/s) | 0,19 |
| Mast Height, extended (mm) | 2040 |
| Mast Height, lowered (mm) | 1890 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1000 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 560 |
| Total Truck Height (mm) | 1222 |
| Travel Speed, no load (km/h) | 5.5 |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 63 |
| Power Type | Lead acid; Li-ion |
