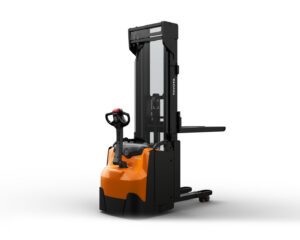

BT Staxio W-series
BT Staxio 2t with Elevating support arms
Toyota Material Handling
SWE200L
Powered Stacker
Need a high-performance stacking solution for working on uneven floors? Our BT Staxio W-series with elevating support arms has been designed to allow the operator get on with the job at hand – simply and safely. With excellent visibility through the truck mast and intuitive controls, it can be driven with the handle in an upright position for improved manoeuvrability in tight spaces.
Key Benefits
- High flexibility and suitable for several applications
- Excellent manoeuvrability in confined areas
- Clear view of the forks
- Use on uneven floors and for double pallet handling
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1590
Lift Height (mm)
4400
Load Capacity (kg)
2000
Travel Speed, no load (km/h)
6
Application & Usage
| Application Usage | Horizontal transport; Loading / Unloading; Stacking / Reaching |
| Suitable Areas | Manufacturing; Stores / Supermarkets; Warehouses |
| Operator Position | Walk With |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 906 |
| Width of Truck (mm) | 790 |
| Turning Radius (mm) | 1590 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 70 |
| Fork Height, lowest (mm) | 90 |
| Free Lift (mm) | 2056 |
| Lift Height (mm) | 4400 |
| Lift Speed, no load (m/s) | 0,24 |
| Mast Height, extended (mm) | 5016 |
| Mast Height, lowered (mm) | 1671 |
Capacity, Weight & Performance
| Load Capacity (kg) | 2000 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 1390 |
| Total Truck Height (mm) | 1294 |
| Travel Speed, no load (km/h) | 6 |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 500 |
| Power Type | Lead acid; Li-ion |
Related Models (BT Staxio W-series Series)

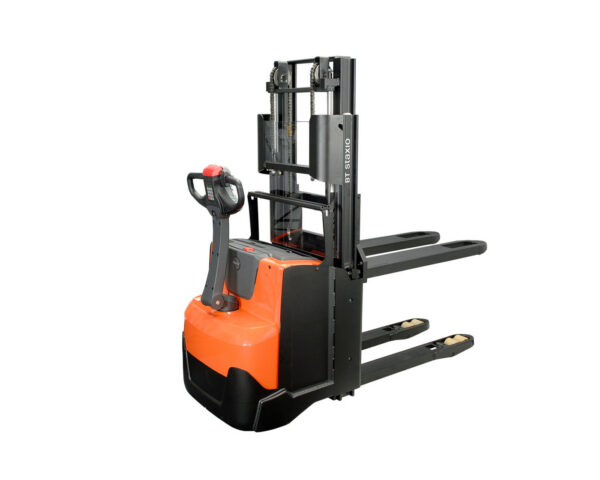

BT Staxio 2t Double Stacking
