BT Optio L-series

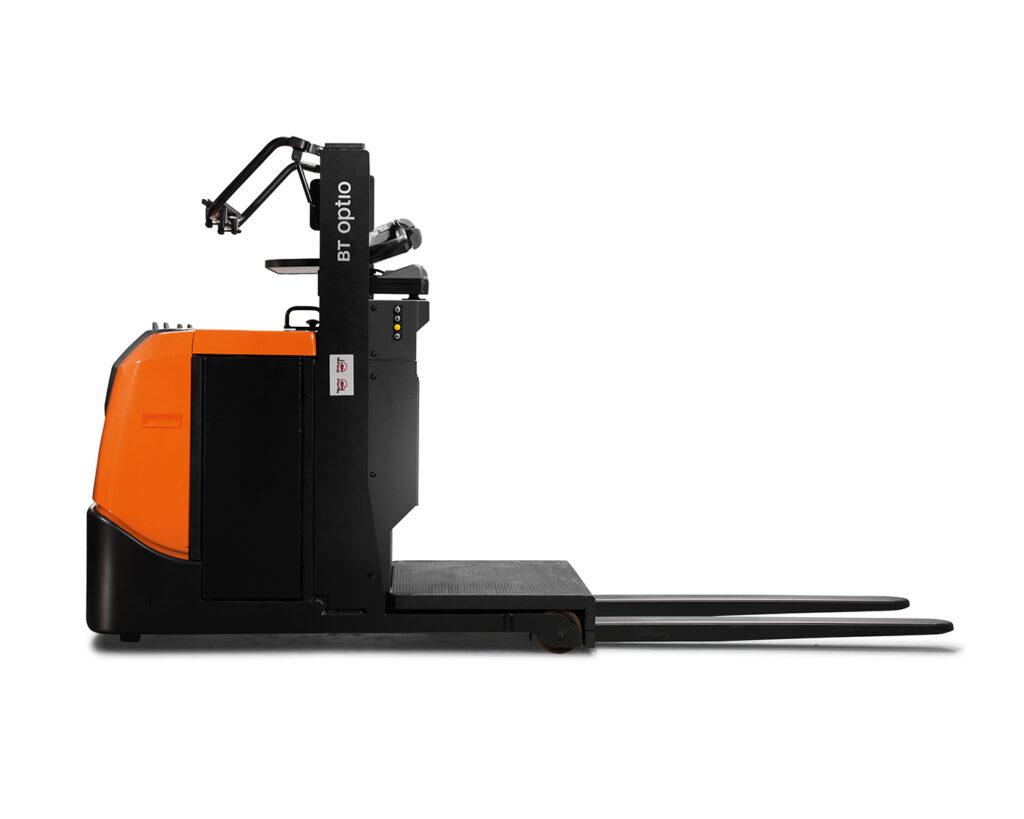

BT Optio 1T Man-Up Walk Through
Toyota Material Handling
OSE100W
Order Pickers
Looking for a solution for your medium to high intense order picking applications? The OSE100W is a Man-Up Order Picker with elevating platform up to 1.2 m allowing picking up to the third level. The initial lift on the forks allows the load carrier to be elevated for comfortable operation.
Key Benefits
- Picking up to the third level, with elevating forks for more ergonomic working
- Fast acceleration and a high travel speed
- Easy on and off
- BT Powerdrive for ease of use
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1490
Lift Height (mm)
1100
Load Capacity (kg)
1000
Travel Speed, no load (km/h)
12
Application & Usage
| Application Usage | Order Picking |
| Suitable Areas | Warehouses |
| Operator Position | Standing |
| Usage Intensity | Medium |
| Transport Distance | Medium-Long |
Technical Specifications
| Length of Truck (mm) | 1594 |
| Width of Truck (mm) | 790 |
| Turning Radius (mm) | 1490 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 62 |
| Fork Height, lowest (mm) | 80 |
| Free Lift (mm) | N/A |
| Lift Height (mm) | 1100 |
| Lift Speed, no load (m/s) | 0,19 |
| Mast Height, extended (mm) | 2570 |
| Mast Height, lowered (mm) | 1550 |
| Pick Height | N/A |
| Order Picking Stand height (in) | 47.24 |
| Order Picking Stand height (mm) | 1200 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1000 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 1162 |
| Total Truck Height (mm) | 1550 |
| Travel Speed, no load (km/h) | 12 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 620 |
| Power Type | Lead acid; Li-ion |
| Transmission | N/A |
Related Models (BT Optio L-series Series)

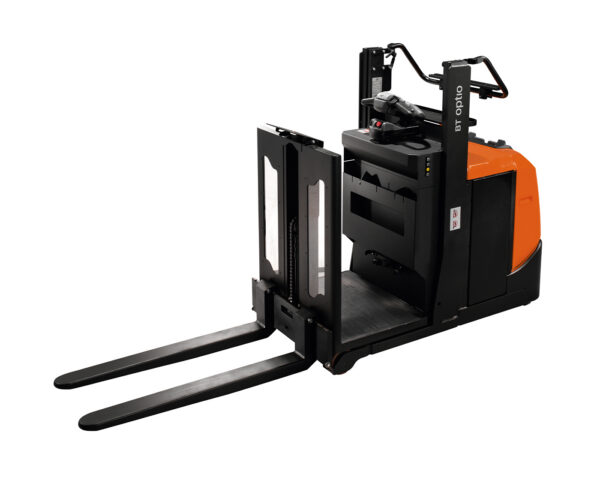

BT Optio 1T
Looking for a solution for your medium to high intense order picking applications? The OSE100 is ...

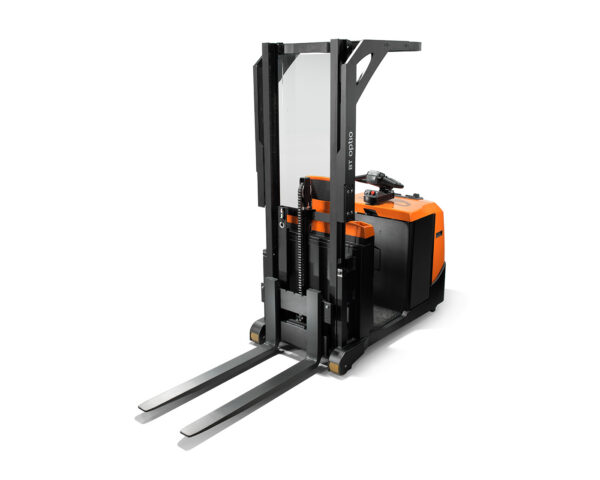

BT Optio 1.2T Stacking
