Optio L-series

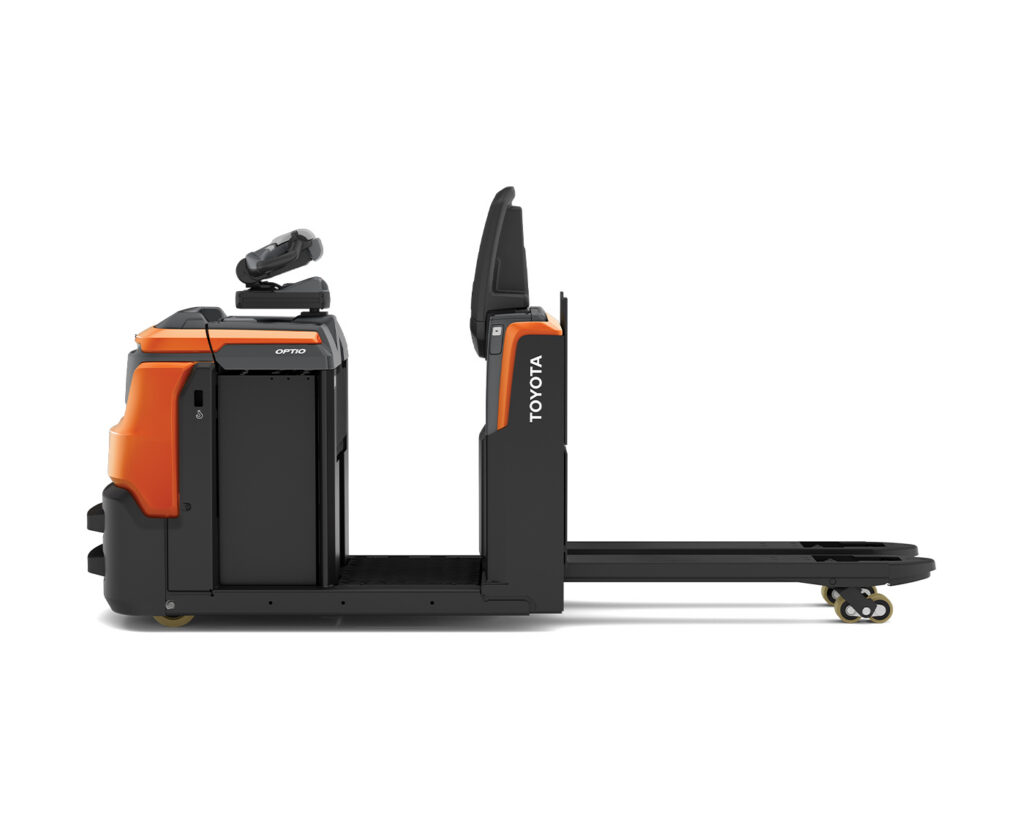

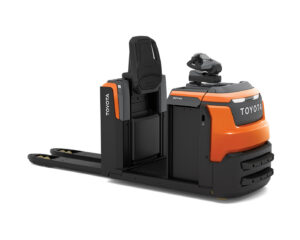

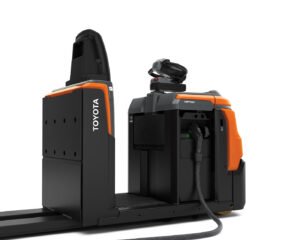

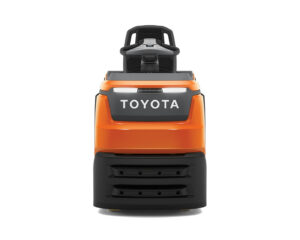

Toyota Optio 2.5T
Toyota Material Handling
OSE250
Order Pickers
Toyota Optio OSE250 is a powerful low-level order picker designed for high-intensity first-level picking in demanding environments. With a load capacity of 2500 kg, it offers exceptional performance and ergonomics, making it an ideal choice for Fast-Moving Consumer Goods (FMCG) operations. Available with a range of fork lengths to handle multiple load carriers, the OSE250 also features flexible battery options—including configurations suitable for cold store applications.
Key Benefits
- First level picking and fast transport over long distance
- The range combines fast acceleration, high travel speed and low energy consumption
- Narrow chassis for easy operation in congested areas and better utilisation of the picking aisles
- Low step-in and wide access for easy on and off
- Available with lead-acid and Li-ion batteries, ensuring secure and convenient charging
Turning Radius (mm)
2327
Lift Height (mm)
225
Load Capacity (kg)
2500
Travel Speed, no load (km/h)
12
Application & Usage
| Application Usage | Order picking |
| Suitable Areas | Warehouses |
| Operator Position | Standing |
| Usage Intensity | Medium-High |
| Transport Distance | Medium-Long |
Technical Specifications
| Length of Truck (mm) | 1354 |
| Width of Truck (mm) | 790 |
| Turning Radius (mm) | 2327 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 57 |
| Fork Height, lowest (mm) | 85 |
| Free Lift (mm) | N/A |
| Lift Height (mm) | 225 |
| Lift Speed, no load (m/s) | 0.05 |
| Mast Height, extended (mm) | 1277 |
| Mast Height, lowered (mm) | N/A |
| Pick Height | N/A |
| Order Picking Stand height (in) | 5.11 |
| Order Picking Stand height (mm) | 130 |
Capacity, Weight & Performance
| Load Capacity (kg) | 2500 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 620 |
| Total Truck Height (mm) | N/A |
| Travel Speed, no load (km/h) | 12 |
| Tow Weight/Max Drawbar Pull (kg) | N/A |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 420 |
| Power Type | Lead acid; Li-ion |
| Transmission | N/A |
Related Models (Optio L-series Series)
Toyota Optio 2T with Scissor Lift Forks
Toyota Optio OSE200X is a high-performance low-level order picker designed for intensive first-le...
Toyota Optio 2.5T with Elevating Platform
Toyota Optio OSE250P is a robust low-level order picker designed for intensive first and second-l...

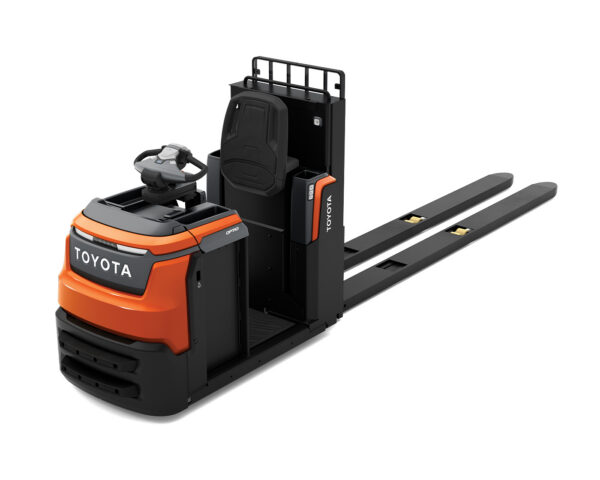

Toyota Optio 1.8T with scissor Lift Forks and Elevating Platform
