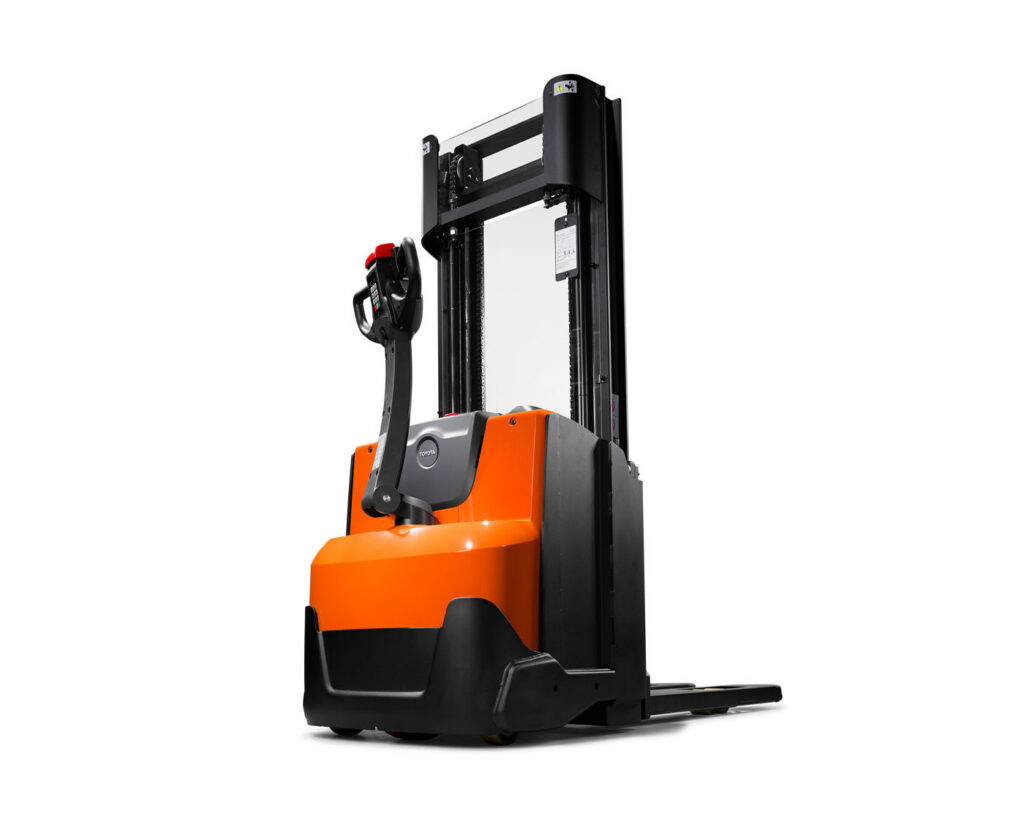

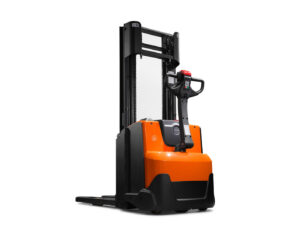

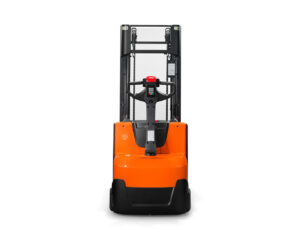

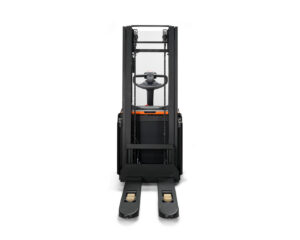

BT Staxio W-series
BT Staxio 1.2t
Toyota Material Handling
SWE120
Powered Stacker
Need a medium intensity stacking solution? Our BT Staxio has been designed to allow the operator get on with the job at hand – simply and safely. With excellent visibility through the truck mast and intuitive controls, it can be driven with the handle in an upright position for improved maneuverability in tight spaces.
Key Benefits
- High stacking height for medium-duty usage
- 5-point chassis for high stability
- Clear view of the forks
- Click-2-Creep for easy creep travel
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1403
Lift Height (mm)
4500
Load Capacity (kg)
1200
Travel Speed, no load (km/h)
6
Application & Usage
| Application Usage | Horizontal transport; Loading / Unloading; Stacking / Reaching |
| Suitable Areas | Manufacturing; Stores / Supermarkets; Warehouses |
| Operator Position | Walk With |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 756 |
| Width of Truck (mm) | 770 |
| Turning Radius (mm) | 1403 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 90 |
| Fork Height, lowest (mm) | 90 |
| Free Lift (mm) | 2054 |
| Lift Height (mm) | 4500 |
| Lift Speed, no load (m/s) | 0.12 |
| Mast Height, extended (mm) | 4947 |
| Mast Height, lowered (mm) | 1720 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1200 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 715 |
| Total Truck Height (mm) | 1235 |
| Travel Speed, no load (km/h) | 6 |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 300 |
| Power Type | Lead acid; Li-ion |
