BT Staxio W-series

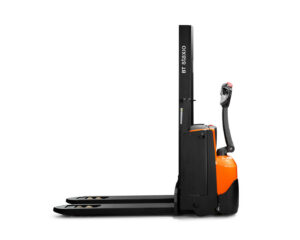

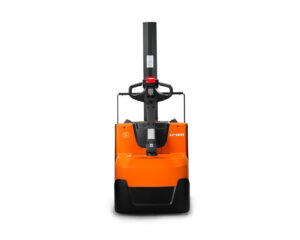

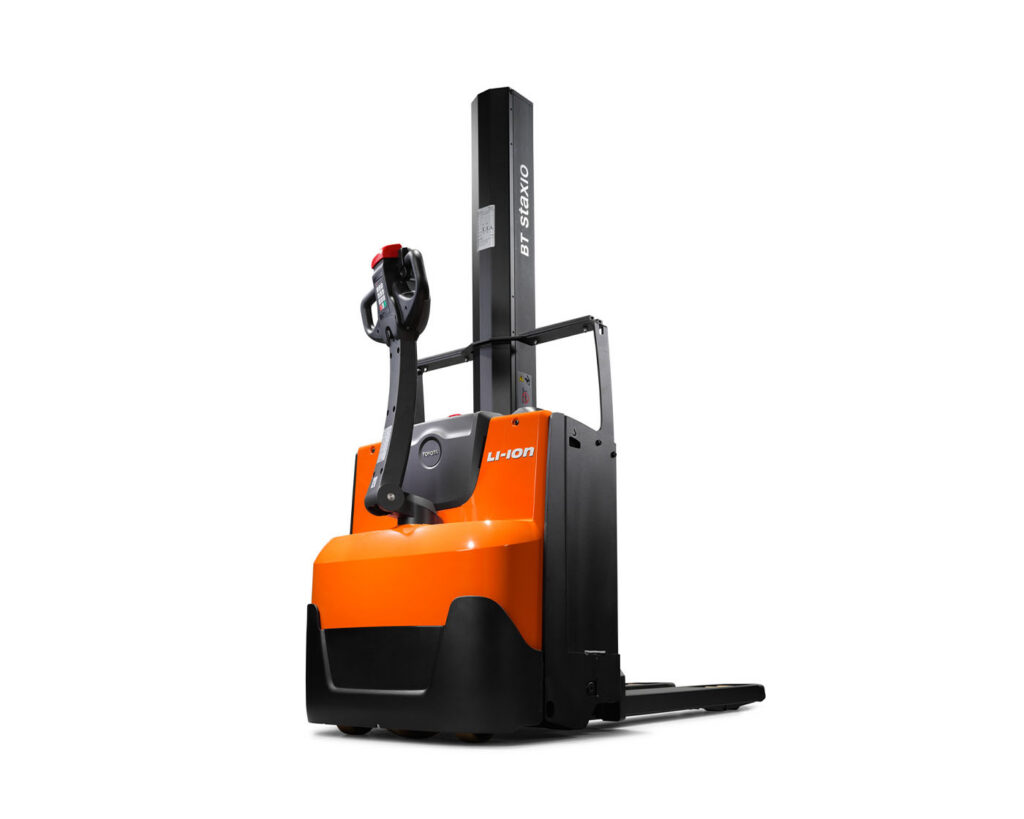

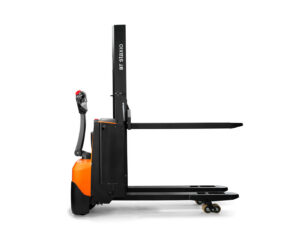

BT Staxio 0.8t
Toyota Material Handling
SWE080L
Powered Stacker
Need a low- to medium-intensity stacking solution? Our BT Staxio has been designed to allow the operator get on with the job at hand – simply and safely. The monomast offers excellent visibility and allows to use the forks as worktable.
Key Benefits
- Elevating support arms for use on uneven floors and double pallet handling
- 5-point chassis for high stability
- Clear view of the forks
- Click-2-Creep for easy creep travel
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1442
Lift Height (mm)
1580
Load Capacity (kg)
800
Travel Speed, no load (km/h)
6
Application & Usage
| Application Usage | Horizontal transport; Loading / Unloading; Stacking / Reaching |
| Suitable Areas | Stores / Supermarkets; Warehouses; Onboard vehicles |
| Operator Position | Walk With |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 627 |
| Width of Truck (mm) | 726 |
| Turning Radius (mm) | 1442 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 90 |
| Fork Height, lowest (mm) | 90 |
| Free Lift (mm) | 1580 |
| Lift Height (mm) | 1580 |
| Lift Speed, no load (m/s) | 0,21 |
| Mast Height, extended (mm) | 1863 |
| Mast Height, lowered (mm) | 1863 |
Capacity, Weight & Performance
| Load Capacity (kg) | 800 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 495 |
| Total Truck Height (mm) | 1235 |
| Travel Speed, no load (km/h) | 6 |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 230 |
| Power Type | Lead acid; Li-ion |
Related Models (BT Staxio W-series Series)

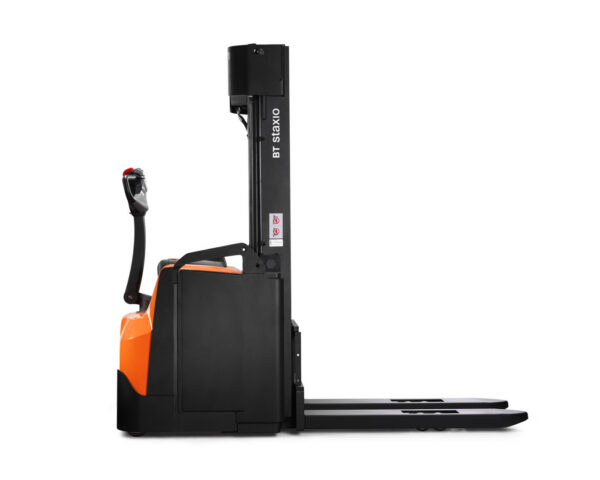

BT Staxio 1.45t
Need a high-performance stacking solution? Our BT Staxio W-series has been designed to allow the ...

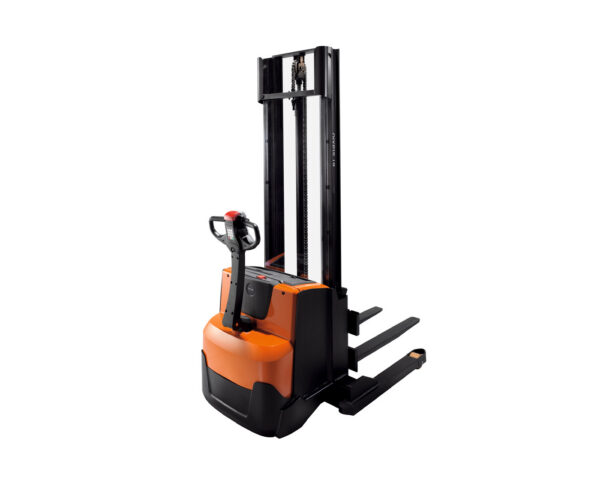

BT Staxio 1.2t with Straddle
