BT Staxio W-series

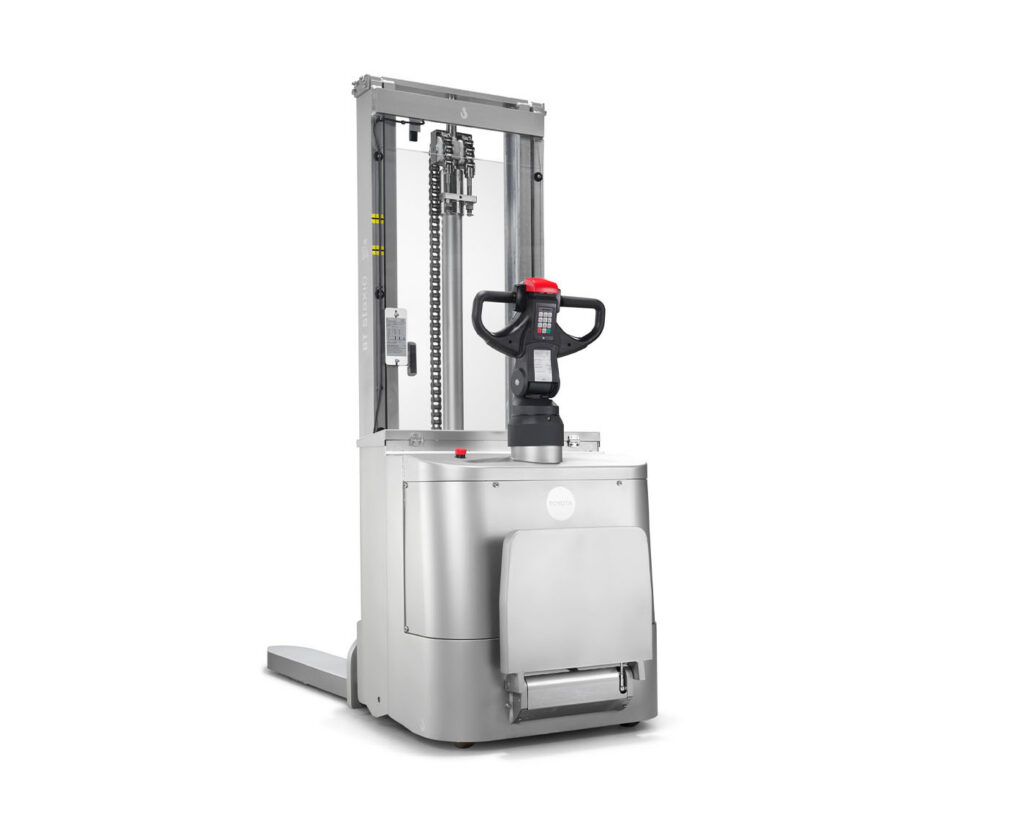

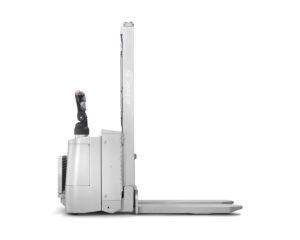

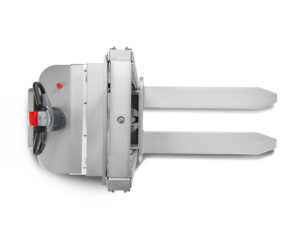

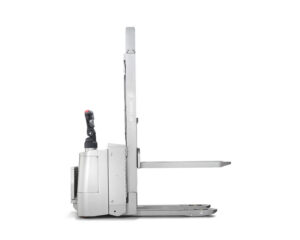

BT Staxio 1.2t Inox
Toyota Material Handling
SWE120I
Powered Stacker
Need a medium intensity stacking solution? Our BT Staxio has been designed to allow the operator get on with the job at hand – simply and safely. With excellent visibility through the truck mast and intuitive controls, it can be driven with the handle in an upright position for improved manoeuvrability in tight spaces. Working in corrosive environments? Choose this inox model.
Key Benefits
- BT Powertrak traction system
- AC drive motor
- Automatic switch-off
- Flip-up operator platform
- Programmable performance
Turning Radius (mm)
1662
Lift Height (mm)
2900
Load Capacity (kg)
1200
Travel Speed, no load (km/h)
6
Application & Usage
| Application Usage | Horizontal transport; Loading / Unloading; Stacking / Reaching |
| Suitable Areas | Hygienic / Pharmaceutical; Wet / Corrosive; Manufacturing |
| Operator Position | Walk With |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 880 |
| Width of Truck (mm) | 790 |
| Turning Radius (mm) | 1662 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 90 |
| Fork Height, lowest (mm) | 90 |
| Free Lift (mm) | 1495 |
| Lift Height (mm) | 2900 |
| Lift Speed, no load (m/s) | 0,2 |
| Mast Height, extended (mm) | 3490 |
| Mast Height, lowered (mm) | 1535 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1200 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 965 |
| Total Truck Height (mm) | 1313 |
| Travel Speed, no load (km/h) | 6 |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 240 |
| Power Type | Lead acid; Li-ion |
