BT Staxio W-series

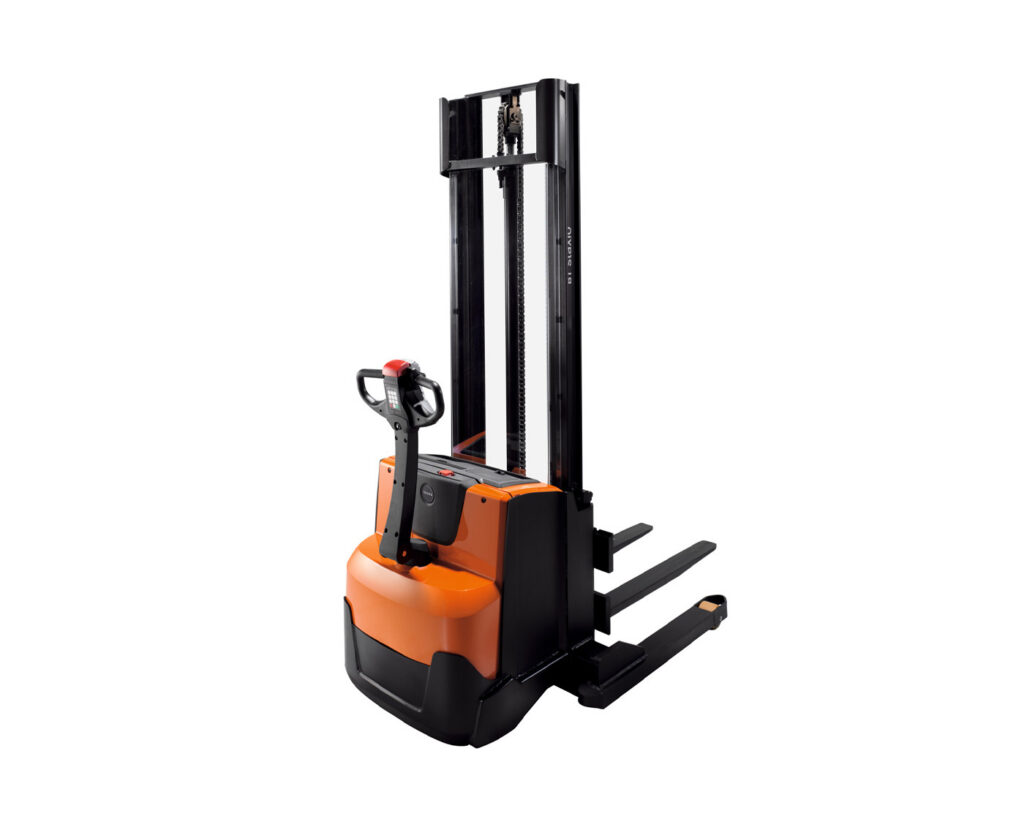

BT Staxio 1.2t with Straddle
Toyota Material Handling
SWE120S
Powered Stacker
Need a high performance stacking solution to handle different pallet types? Our BT Staxio W-series with straddle support arms has been designed to allow the operator get on with the job at hand – simply and safely. With excellent visibility through the truck mast and intuitive controls, it can be driven with the handle in an upright position for improved manoeuvrability in tight spaces.
Key Benefits
- High stacking height for medium-duty usage
- Can handle closed and open pallets
- Clear view of the forks
- Click-2-Creep for easy creep travel
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1360
Lift Height (mm)
4755
Load Capacity (kg)
1200
Travel Speed, no load (km/h)
6
Application & Usage
| Application Usage | Horizontal transport; Stacking / Reaching |
| Suitable Areas | Manufacturing; Stores / Supermarkets; Warehouses |
| Operator Position | Walk With |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 784 |
| Width of Truck (mm) | 770 |
| Turning Radius (mm) | 1360 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 50 |
| Fork Height, lowest (mm) | 50 |
| Free Lift (mm) | 2054 |
| Lift Height (mm) | 4755 |
| Lift Speed, no load (m/s) | 0,21 |
| Mast Height, extended (mm) | 5322 |
| Mast Height, lowered (mm) | 1717 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1200 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 795 |
| Total Truck Height (mm) | 1235 |
| Travel Speed, no load (km/h) | 6 |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 300 |
| Power Type | Lead acid; Li-ion |
Related Models (BT Staxio W-series Series)

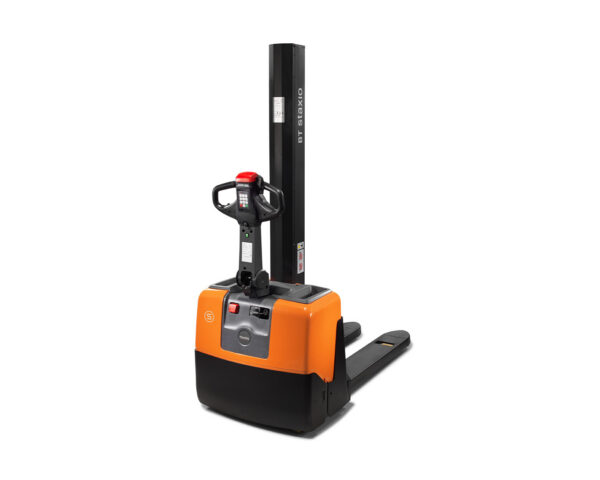

BT Staxio 1t Compact
Looking for a compact stacker for low-intensity applications? Weighing just 467kg, being exceptio...

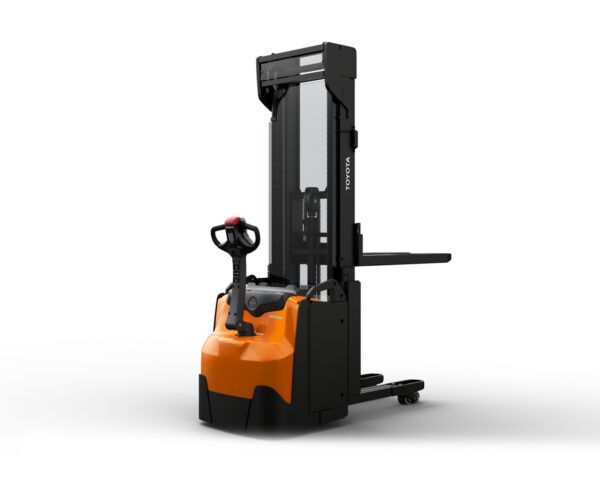

BT Staxio 2t with Elevating support arms
