Toyota Material Handling

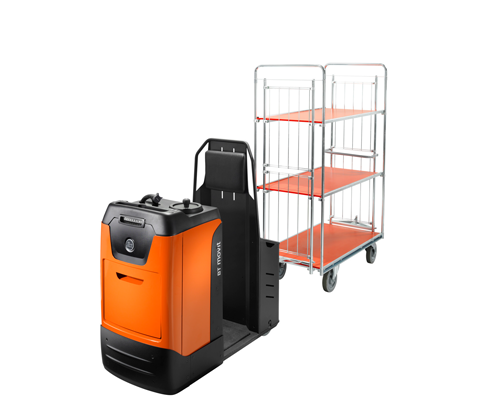

TSE 100-150 Tow Motors

Tow Motors

1000 – 1500kg Capacity

Step into a world of cutting-edge material handling with the Toyota Movit range of tow trucks. Designed to excel in both order picking and horizontal transport operations, these tow trucks redefine safety and efficiency, setting new standards in the industry. The Toyota Movit range is a testament to precision and performance. With seamless integration into order picking and horizontal transport operations, these tow trucks empower your workflow. Whether you're dealing with palletized, unpalletized, or roller-caged loads, the Movit range ensures a smooth and efficient transportation process.

DOWNLOAD BROCHURE ENQUIRE
Dimensions+
Overall height h151091 mm
Stand height h770 mm
Coupling height towing bar h10270 mm
Overall length l11266 mm
Overall width b1/ b2595/600 mm
Ground clearance, centre of wheelbase Ground clearance, centre of wheelbasez m233 mm
Turning radius Wa1085 mm
Clear width driver compartment entrance423
Identification+
ManufacturerBT
ModelTSE100 - 702
DriveElectric
Operator typeStand on
Load capacity/rated load -- Q1000 kg
Rated drawbar pull600
Wheelbase815 mm
Motor Information+
Drive motor rating S2 60 min1,0
Battery voltage/nominal capacity K524/76, 105
Battery weight58/75
Energy consumption acc. to VDI cycle 3) kwh-h
Others+
Type of drive controlVariable AC
Sound level at the driver's ear according to EN 12 053<70 db-a
Performance data+
Travel speed, with/without load9,0/12,0 km-h
Drawbar pull, with/without load600
Max. drawbar pull, with/without load1320
Gradeability, with/without load10/15 82
Max. gradeability, with/without load 2)10/15 82
Acceleration time, with/without load (0-10m)5,7/4,7
Service brakeElectromagnetic
Weight+
Service weight without battery250 kg
Axle load, with load, drive/castor/support arm wheel150/33/68 kg
Axle load, without load, drive/castor/support arm wheel150/33/68 kg
Wheels+
Drive/castor/fork wheelPolyurethane/Polyurethane/Elastic
Wheel size, front150/33/68
Wheel size, rear200 x 50
