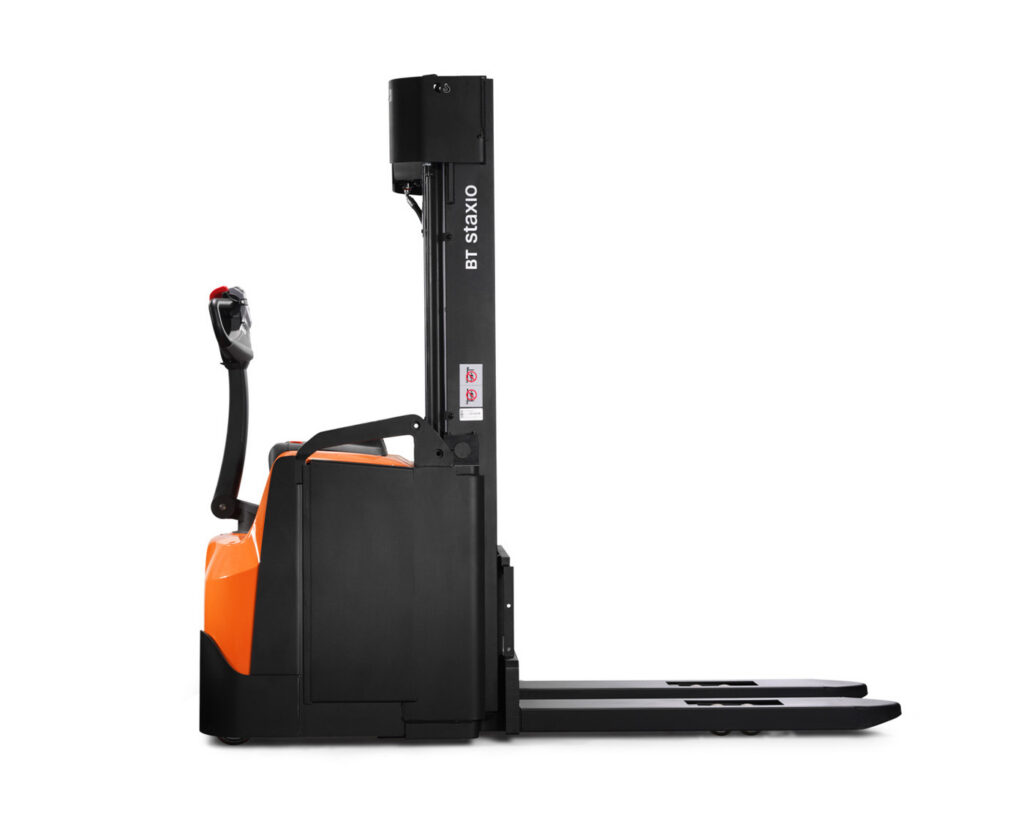

BT Staxio W-series
BT Staxio 1.45t
Toyota Material Handling
SWE145
Powered Stacker

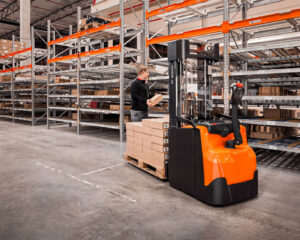

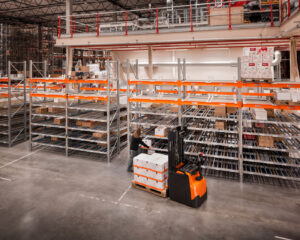

Need a high-performance stacking solution? Our BT Staxio W-series has been designed to allow the operator get on with the job at hand – simply and safely. With excellent visibility through the truck mast and intuitive controls, it can be driven with the handle in an upright position for improved manoeuvrability in tight spaces.
Key Benefits
- Maximum stacking height for high intensive usage
- 5-point chassis for high stability
- Clear view of the forks
- Click-2-Creep for easy creep travel
- Smart truck: easy to connect, monitor & improve
Turning Radius (mm)
1504
Lift Height (mm)
5400
Load Capacity (kg)
1450
Travel Speed, no load (km/h)
6
Application & Usage
| Application Usage | Horizontal transport; Loading / Unloading; Stacking / Reaching |
| Suitable Areas | Manufacturing; Stores / Supermarkets; Warehouses |
| Operator Position | Walk With |
| Usage Intensity | Medium |
| Transport Distance | Medium |
Technical Specifications
| Length of Truck (mm) | 849 |
| Width of Truck (mm) | 790 |
| Turning Radius (mm) | 1504 |
| Overhead Guard Height (mm) | N/A |
Lifting, Mast & Forks
| Fork Height (mm) | 90 |
| Fork Height, lowest (mm) | 90 |
| Free Lift (mm) | 2156 |
| Lift Height (mm) | 5400 |
| Lift Speed, no load (m/s) | 0,33 |
| Mast Height, extended (mm) | 5916 |
| Mast Height, lowered (mm) | 1671 |
Capacity, Weight & Performance
| Load Capacity (kg) | 1450 |
| Load Center (mm) | 600 |
| Truck Weight, w/o battery (kg) | 1169 |
| Total Truck Height (mm) | 1294 |
| Travel Speed, no load (km/h) | 6 |
Power Source
| Battery Voltage | 24 |
| Battery Capacity (Ah) | 500 |
| Power Type | Lead acid; Li-ion |
Related Models (BT Staxio W-series Series)

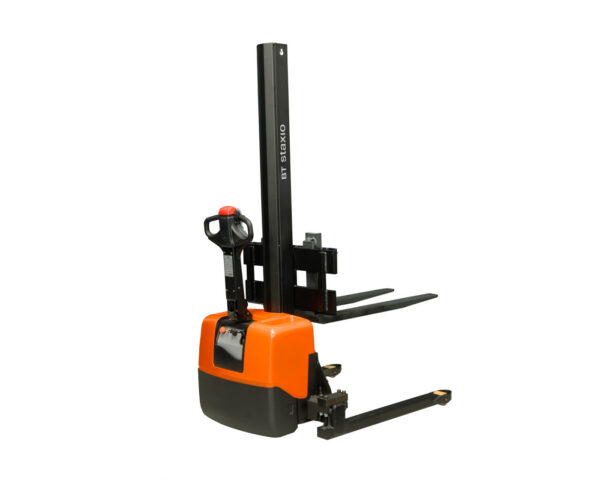

BT Staxio 1t Compact Straddle
